Notes With Regard To Diagnosis

The phenomena listed in the following illustration are not abnormal.

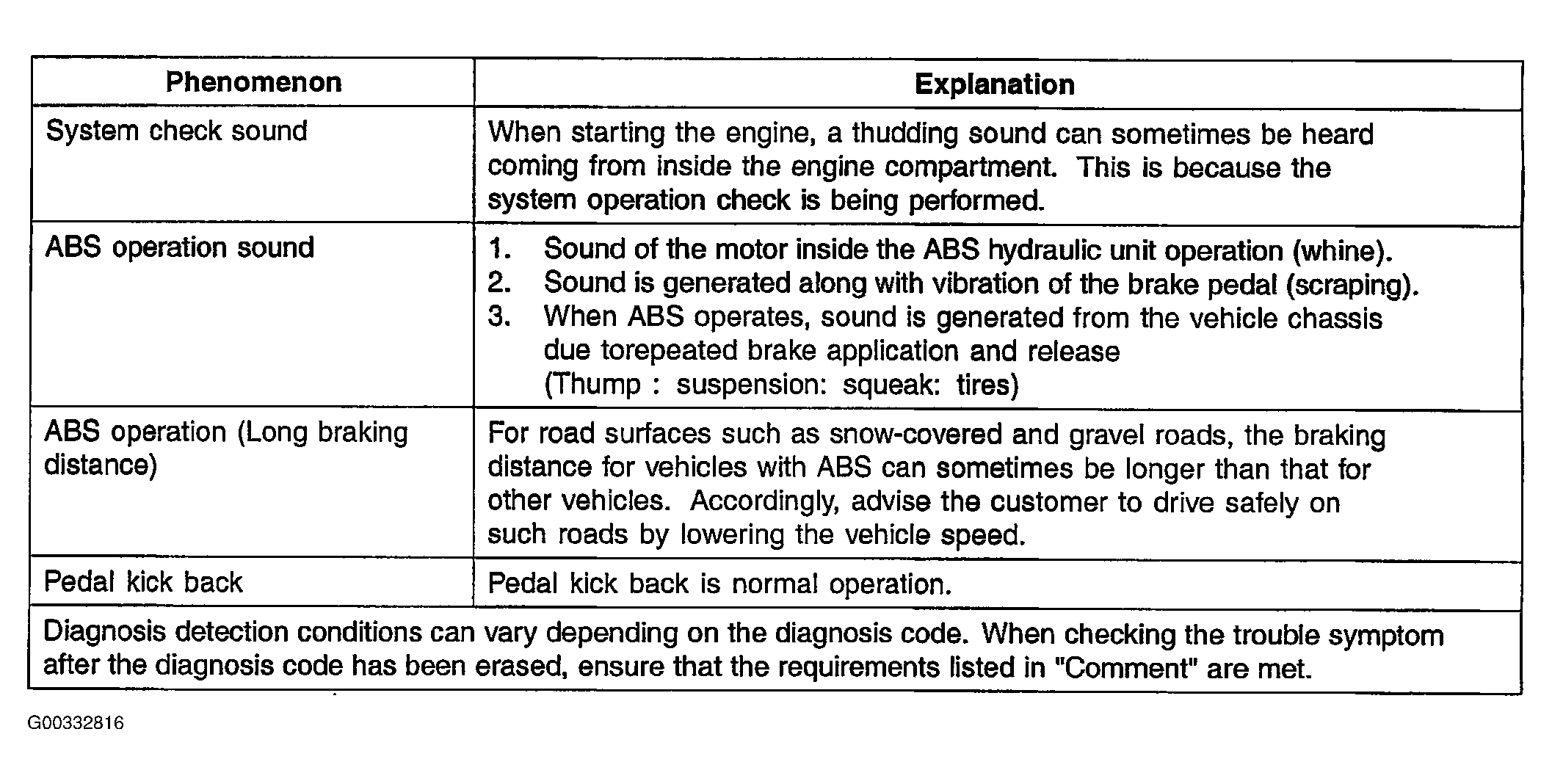

Fig 1: Diagnostic Troubleshooting Phenomenon Explanation Chart

G00332816

Courtesy of KIA MOTORS AMERICA, INC.
