Valve Body: Reassembly

CAUTION:

All reassembled parts must be thoroughly cleaned.
Do not use grease and use the petrolatum or industrial Vaseline if necessary.
Apply AT fluid to all of the components.
Do not use the cotton gloves. Use paper towel or nylon fabric.
After reassembling the valve body, be careful not to insert the dirt and dust into the valve body.

Install the damping valve and the damping spring on the outside valve body.

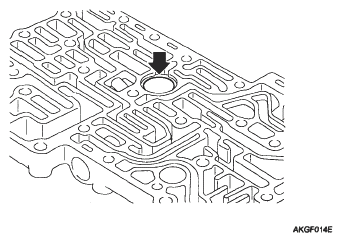

Fig 1: Locating Positions For Installing Damping Valve And Damping Spring
Courtesy of KIA MOTORS AMERICA, INC.
Install the two steel balls, spring, strainer on the inside valve body.

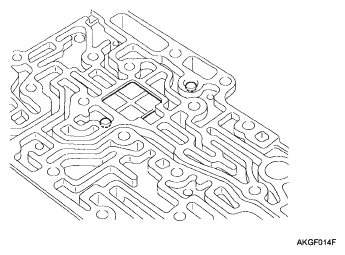

Fig 2: View Of Inside Valve Body
Courtesy of KIA MOTORS AMERICA, INC.
Install the control valve on the valve body.
Tighten the valve body bolts.
A: 6 X 60 (19EA), B: 6 X 55 (1EA), C: 6X 70 (4EA)

TORQUE: 10-12 N.m (100-120 kgf.cm, 7-8 lb-ft)

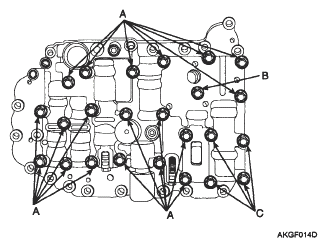

Fig 3: Identifying Valve Body Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Install the solenoid valve assembly (A).
- Prior to assembly, remove the marked parts.

  Fig 4: Identifying Solenoid Valve Assembly
  Courtesy of KIA MOTORS AMERICA, INC.
Install the main harness (A) on the valve body.

Fig 5: Identifying Main Harness On Valve Body
Courtesy of KIA MOTORS AMERICA, INC.

Fig 6: Identifying Main Harness On Valve Body
Courtesy of KIA MOTORS AMERICA, INC.
