Automatic Transaxle ( A4CF2)
>>
Automatic Transaxle System
>>
Valve Body
>>
Components (2)
Components (2)

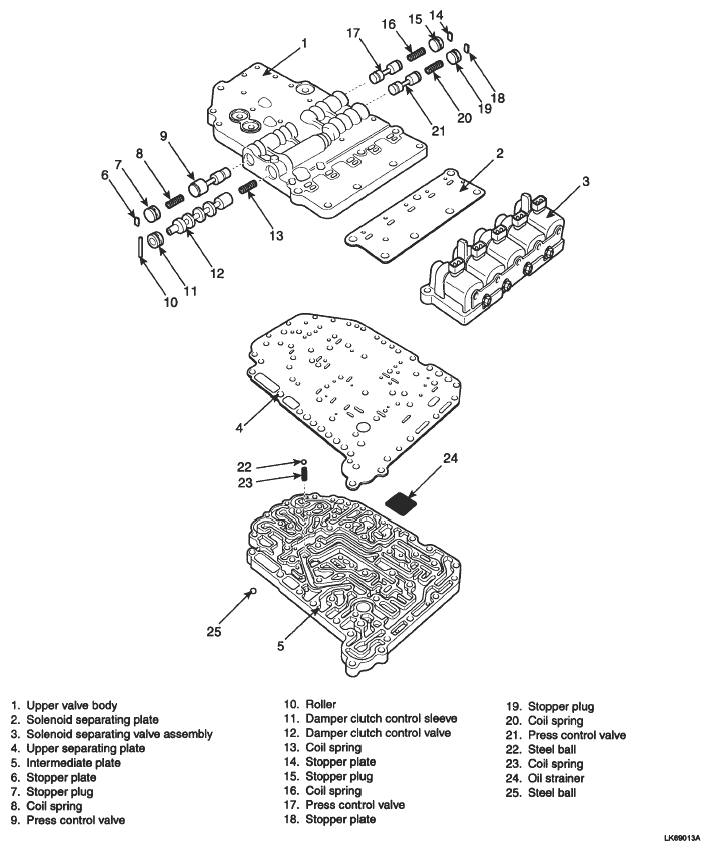

Fig 1: Identifying Valve Body Components (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
