UNDERDRIVE Clutch: Reassembly

Assemble the two underdrive clutch spring D-rings.
Install the underdrive clutch spring retainer (A).

Fig 1: Identifying Underdrive Clutch Spring Retainer
Courtesy of KIA MOTORS AMERICA, INC.
Assemble the two underdrive clutch piston D-rings.
Install the underdrive clutch piston (A).

Fig 2: Identifying Under Drive Clutch Piston
Courtesy of KIA MOTORS AMERICA, INC.
Using the special tool (09453-4C300), install the underdrive clutch piston snap ring (A).

Fig 3: Identifying Special Tool (09453-4C300) And Underdrive Clutch Piston Snap Ring
Courtesy of KIA MOTORS AMERICA, INC.
Assemble the clutch plate, clutch disc and clutch reaction plate.
CAUTION: Align the two tooth of the clutch plate, clutch disc and clutch reaction plate with two holes of the underdrive clutch. See Fig 4.

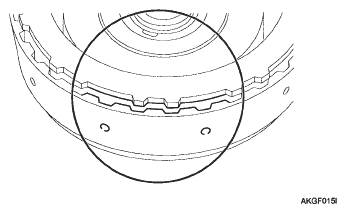

Fig 4: Aligning Two Tooth Of Clutch Plate
Courtesy of KIA MOTORS AMERICA, INC.
Install the clutch reaction plate.
Install the clutch reaction plate snap ring (A).

Fig 5: Identifying Clutch Reaction Plate Snap Ring
Courtesy of KIA MOTORS AMERICA, INC.
Measure the end play between the snap ring and the reaction plate with 245.17 kPa (2.5 Bar, 35.56 psi) air pressure and 1200N (120 kgf) weight applied.
Standard value: 0.047-0.055 in (1.2-1.4 mm)

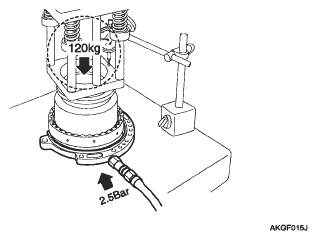

Fig 6: Measuring End Play Between Snap Ring And Reaction Plate
Courtesy of KIA MOTORS AMERICA, INC.
If the end play is not within the standard value, choose the suitable snap ring.
Install the two seal rings on in the input shaft.
Assemble the input shaft (A) in the underdrive clutch assembly.

Fig 7: Identifying Input Shaft
Courtesy of KIA MOTORS AMERICA, INC.
Install the input shaft snap (A).

Fig 8: Identifying Input Shaft Snap Ring
Courtesy of KIA MOTORS AMERICA, INC.
