UNDERDRIVE Clutch: Disassembly

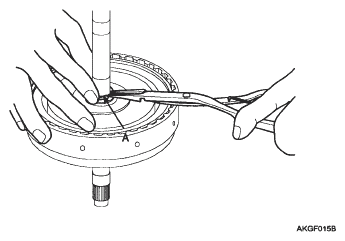

Remove the input shaft snap ring (A).

Fig 1: Identifying Input Shaft Snap Ring
Courtesy of KIA MOTORS AMERICA, INC.

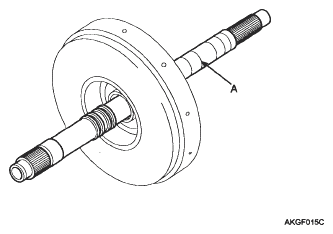

Remove the input shaft (A).

Fig 2: Identifying Input Shaft
Courtesy of KIA MOTORS AMERICA, INC.
Remove the two seal rings.

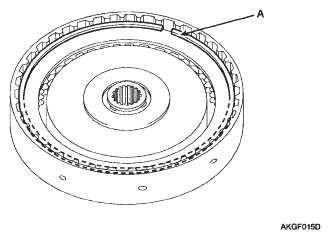

Remove the clutch reaction plate snap (A).

Fig 3: Identifying Clutch Reaction Plate Snap Ring
Courtesy of KIA MOTORS AMERICA, INC.
Disassemble the clutch reaction plate.
Disassemble the three clutch discs and three plates.

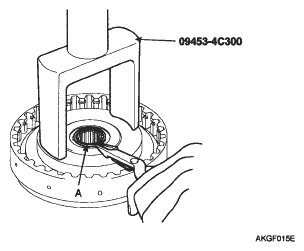

Using the special tool (09453-4C300), remove the underdrive clutch piston snap ring (A).

Fig 4: Identifying Special Tool (09453-4C300) And Underdrive Clutch Piston Snap Ring
Courtesy of KIA MOTORS AMERICA, INC.
Using air pressure, remove the under drive clutch piston (A).

Fig 5: Identifying Under Drive Clutch Piston
Courtesy of KIA MOTORS AMERICA, INC.
Disassemble the two underdrive clutch piston D-rings.
Remove the clutch return spring (A).

Fig 6: Identifying Clutch Return Spring
Courtesy of KIA MOTORS AMERICA, INC.
Remove the underdrive clutch spring retainer (A).

Fig 7: Identifying Underdrive Clutch Spring Retainer
Courtesy of KIA MOTORS AMERICA, INC.
Disassemble the two underdrive clutch spring D-rings.
