Transfer Driven Gear: Reassembly

  1. Install the cap seal (A) on the output shaft.
    Fig 1: Identifying Cap Seal
    G04864103Courtesy of KIA MOTORS AMERICA, INC.

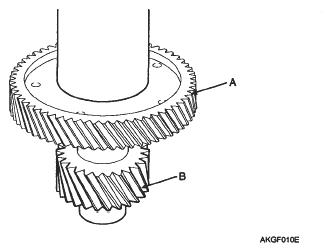

  2. Press the transfer driven gear (A) and shaft (B).
    Fig 2: Identifying Transfer Driven Gear And Shaft
    G04864105Courtesy of KIA MOTORS AMERICA, INC.
  3. Using the special tool (09453-2F100), press the taper roller bearing (A).
    Fig 3: Identifying Special Tool (09453-2F100) And Taper Roller Bearing
    G04864106Courtesy of KIA MOTORS AMERICA, INC.
