Transfer Drive Gear: Reassembly

Press the taper roller bearing (A) into the transfer driver gear.

Fig 1: Identifying Taper Roller Bearing
Courtesy of KIA MOTORS AMERICA, INC.
Install the bearing bracket (A).

Fig 2: Identifying Transfer Drive Gear Bearing Bracket
Courtesy of KIA MOTORS AMERICA, INC.
Press the taper roller bearing (A).

Fig 3: Identifying Taper Roller Bearing
Courtesy of KIA MOTORS AMERICA, INC.

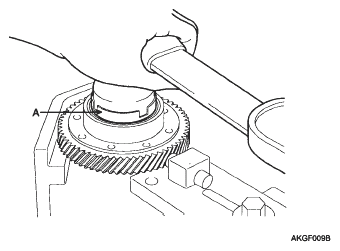

Using the torque wrench tighten the lock nut (A).

Fig 4: Identifying Lock Nut
Courtesy of KIA MOTORS AMERICA, INC.

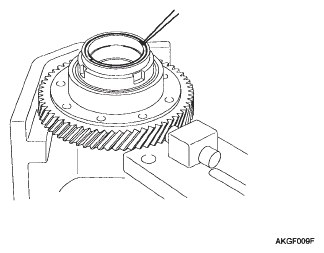

Stake the nut with a chisel.

Fig 5: Positioning Transfer Drive Gear On Vise
Courtesy of KIA MOTORS AMERICA, INC.
