Second Brake: Disassembly

  1. Using air pressure, remove the underdrive clutch piston (A).

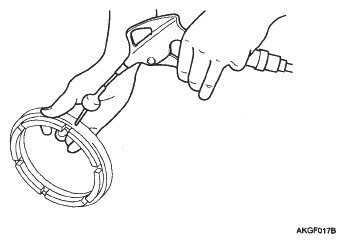

    Fig 1: Removing Underdrive Clutch Piston Using Air Pressure
    G04864165Courtesy of KIA MOTORS AMERICA, INC.
