Oil Pump (A/T): Components

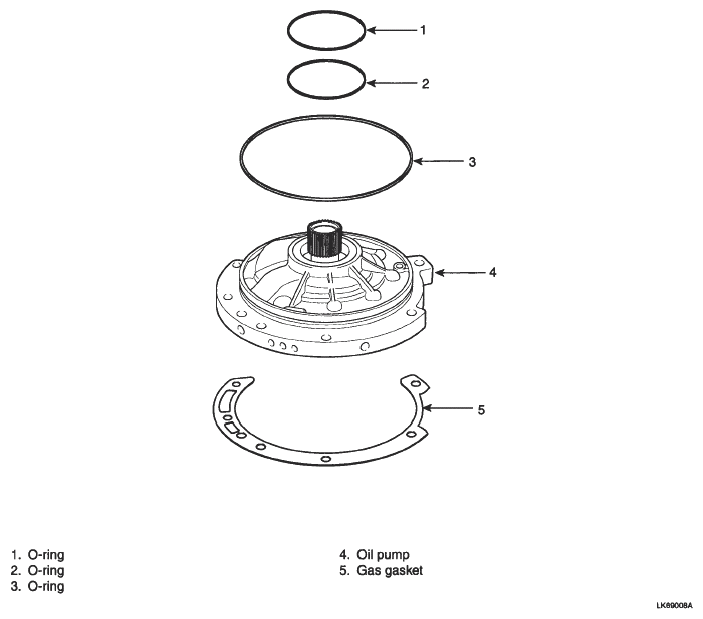

Fig 1: Identifying Oil Pump (A/T) Components

G04864075

Courtesy of KIA MOTORS AMERICA, INC.
