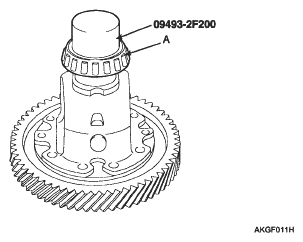

Automatic Transaxle System: Differential: Reassembly

1. Connect the side gear with the spacer, and install the side gear into differential case.
   NOTE: Use a spacer of neutral thickness.
   0.037-0.039 in (0.93-1.00 mm) for a new side gear

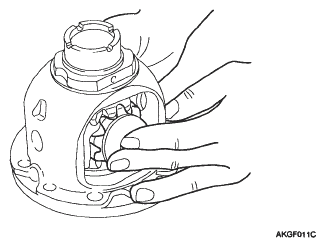

2. Connect the washer to the pinion and install them simultaneously at the point so that they may lock with the side gear.
   Fig 1: Installing Side Gear Into Differential Case

   Courtesy of KIA MOTORS AMERICA, INC.

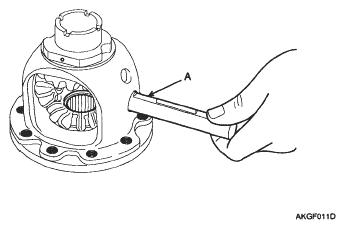

3. Insert the pinion shaft (A).
   Fig 2: Inserting Pinion Shaft

   Courtesy of KIA MOTORS AMERICA, INC.

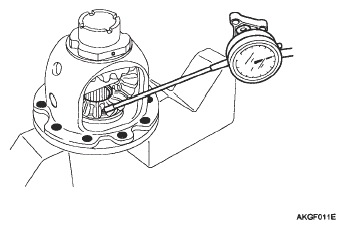

4. Check the side gear pinion backlash and install a proper spacer.

   Standard value: 0.00098-0.0059 in (0.025-0.150 mm)

   NOTE: Adjust backlashes at both sides to be within standard value.
   Fig 3: Checking Side Gear Pinion Backlash

   Courtesy of KIA MOTORS AMERICA, INC.

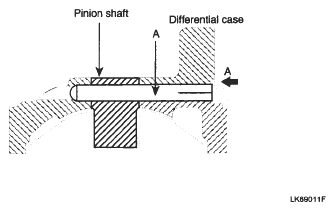

1. Install the lock pin. See Fig 4.
   Fig 4: Position For Installing Lock Pin

   Courtesy of KIA MOTORS AMERICA, INC.

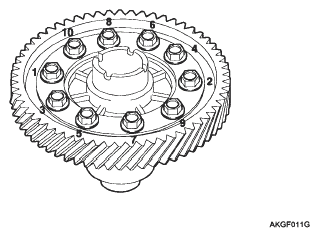

Apply the ATF to the entire threads of the bolts. Tighten to specifications using the sequence. See Fig 5.

Fig 5: Identifying Differential Drive Gear Bolts Tightening Sequence

Courtesy of KIA MOTORS AMERICA, INC.
