Home >> Kia >> 2008 >> Spectra5 2.0 2, Automatic >> Repair and Diagnosis >> Body & Frame >> Exterior/Interior Trim >> Console >> Interior >> Console >> Components

Exterior/Interior Trim: Console: Interior: Console: Components

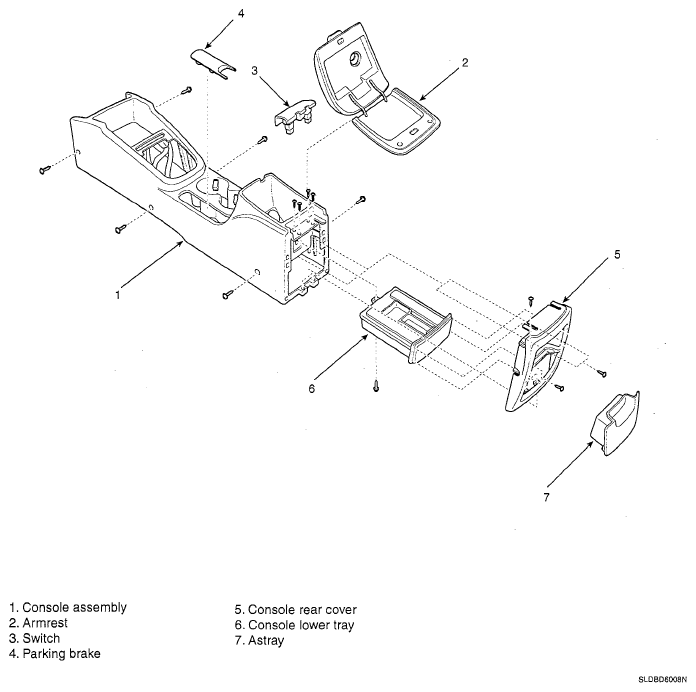

Fig 1: Exploded View Of Interior Console Components

G05115693

Courtesy of KIA MOTORS AMERICA, INC.
