Repair and Diagnosis: Transmission: Clutch: General: Troubleshooting

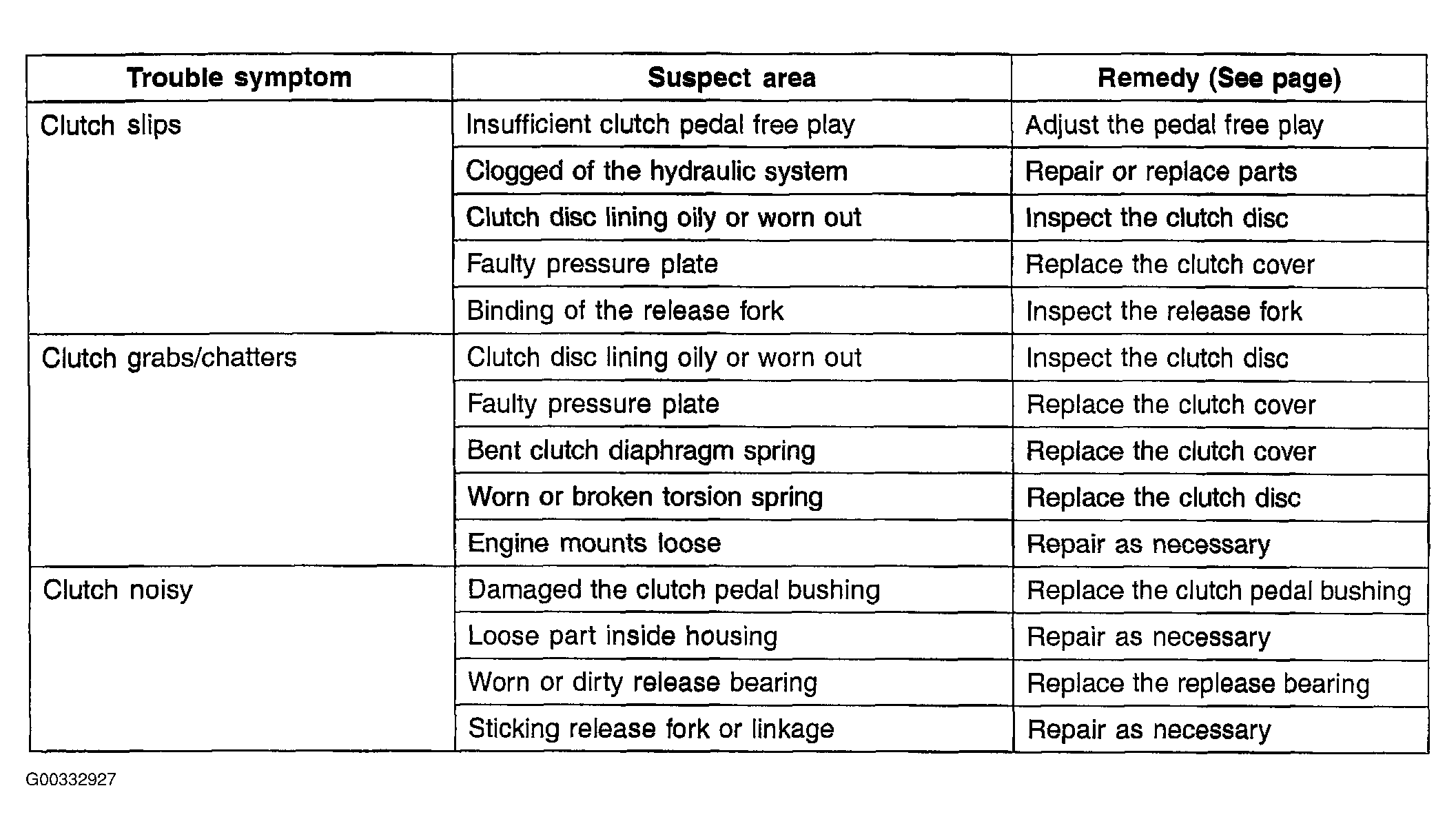

Fig 1: Symptoms (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

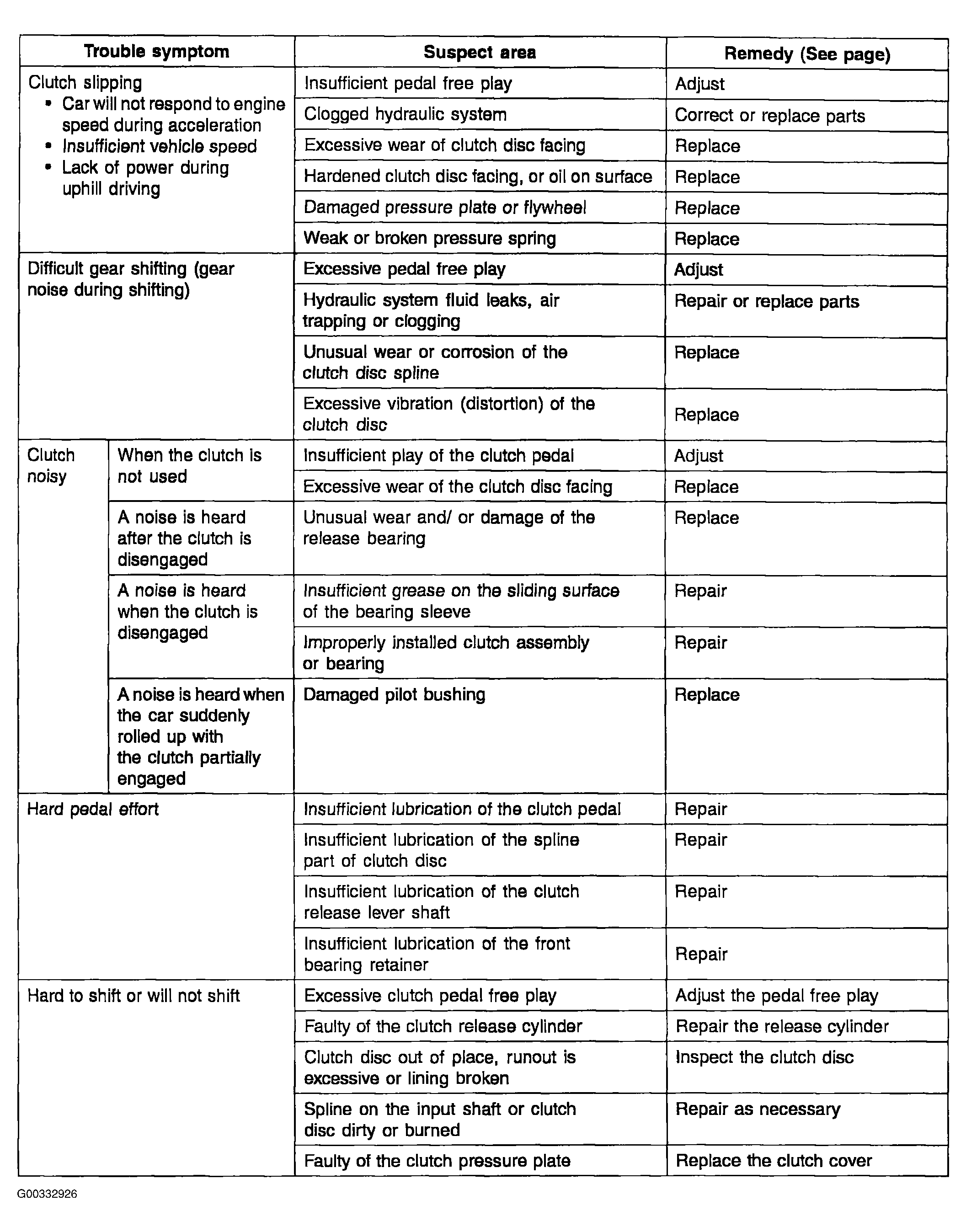

Fig 2: Symptoms (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
