Repair and Diagnosis: Transmission: Clutch: General: Components

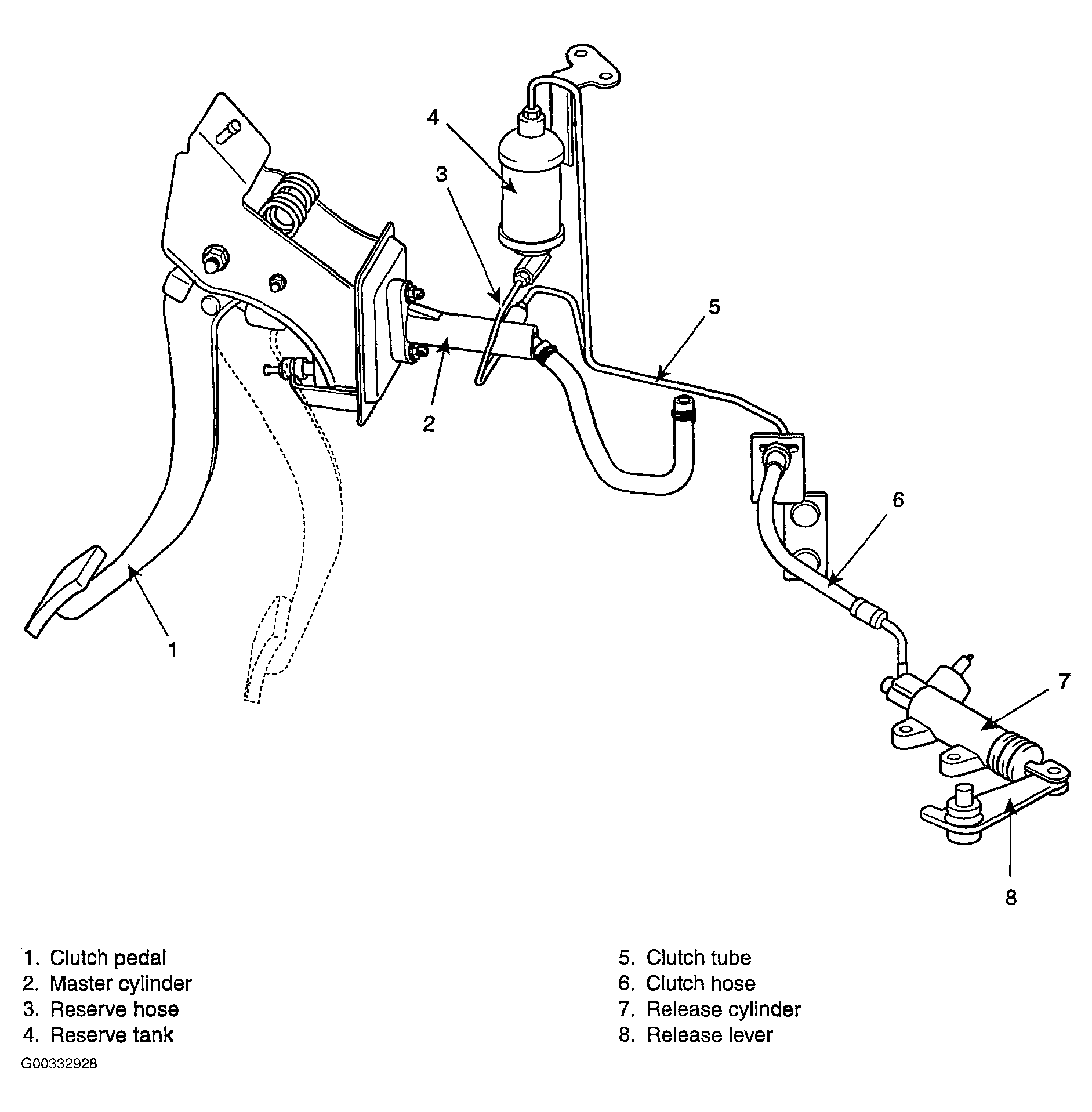

Fig 1: Hydraulic Clutch System Components

Courtesy of KIA MOTORS AMERICA, INC.

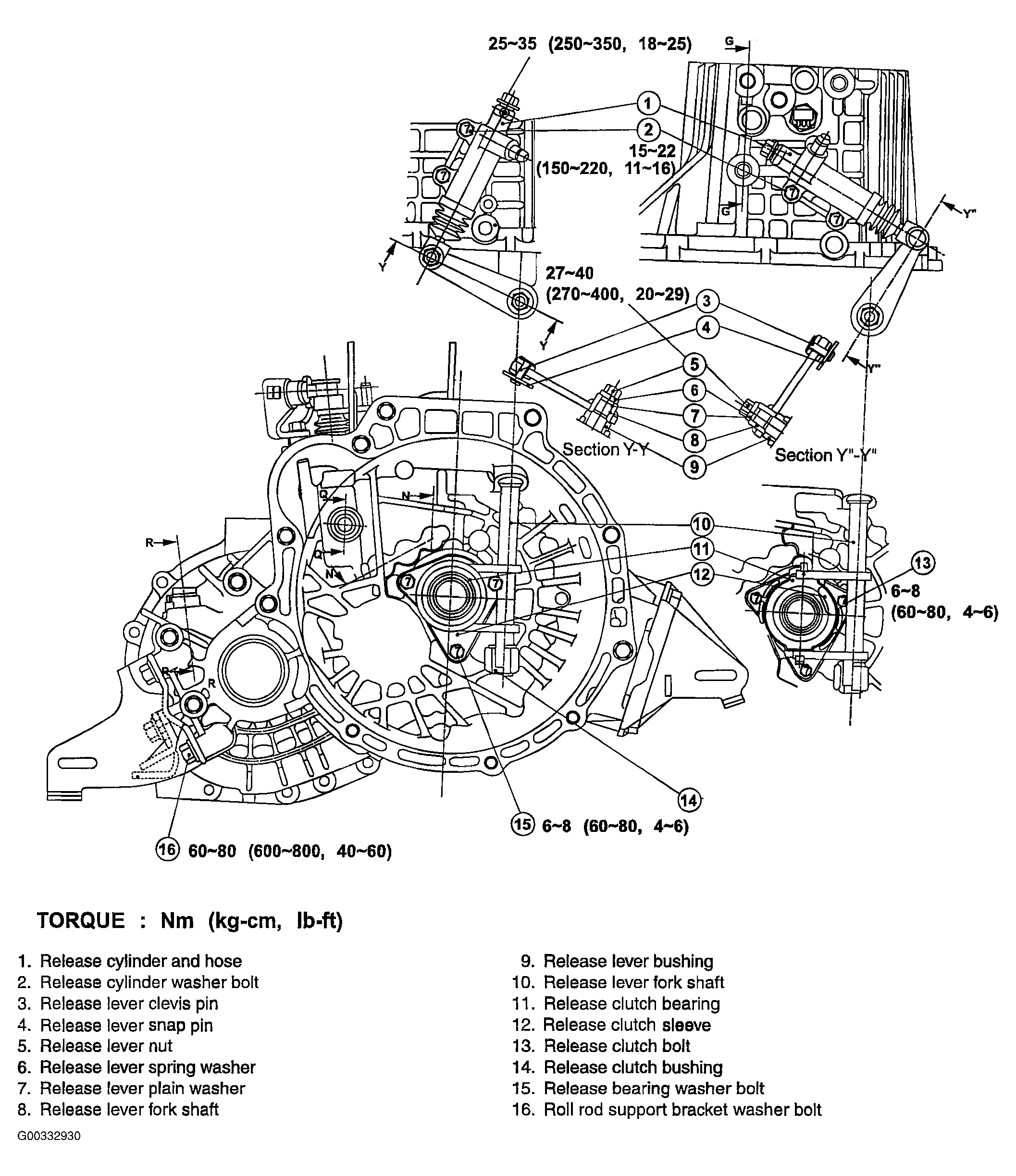

Fig 2: Hydraulic Clutch System Components With Torque Specifications

Courtesy of KIA MOTORS AMERICA, INC.

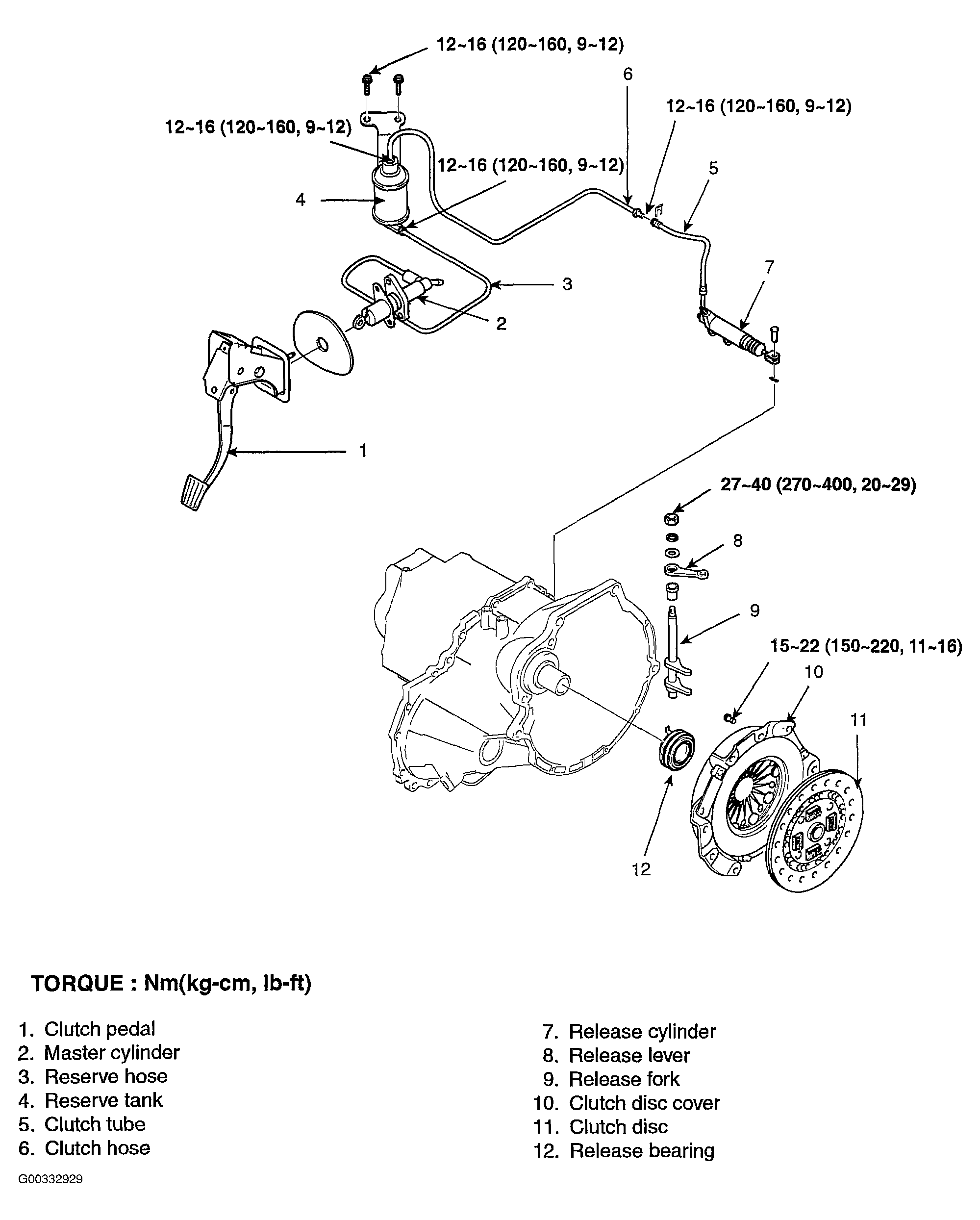

Fig 3: Clutch System Components With Torque Specifications

Courtesy of KIA MOTORS AMERICA, INC.
