Parking System

The parking system for A4CF2 model is the cam type. The roller type is installed to the existing new generation A/T.

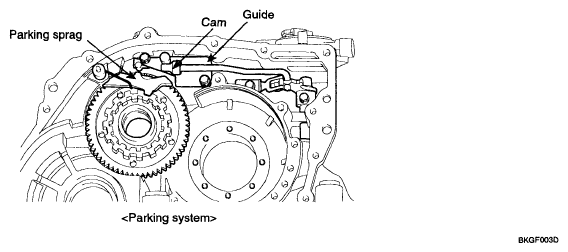

Fig 1: Identifying Parking System
G04864542Courtesy of KIA MOTORS AMERICA, INC.
