Automatic Transaxle: Components

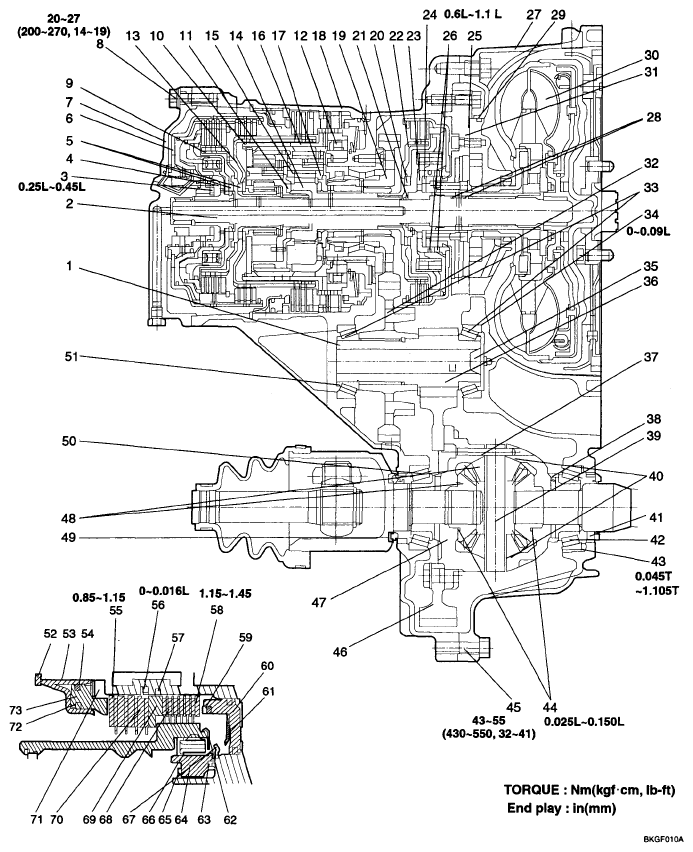

Fig 1: Cutaway View Of Automatic Transaxle Components With Torque Specifications
G04864669Courtesy of KIA MOTORS AMERICA, INC.

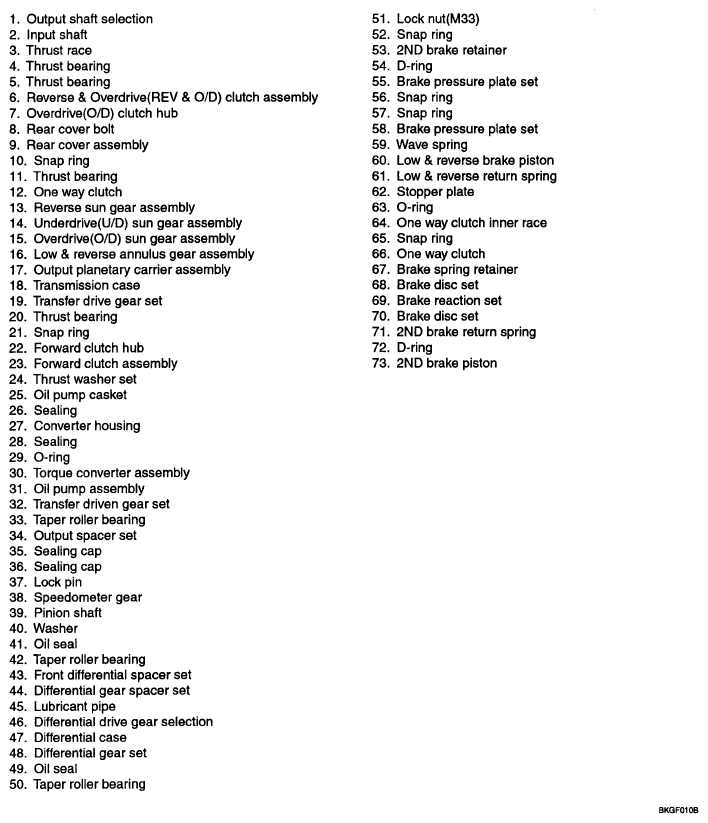

Fig 2: Identifying Automatic Transaxle Components
G04864670Courtesy of KIA MOTORS AMERICA, INC.

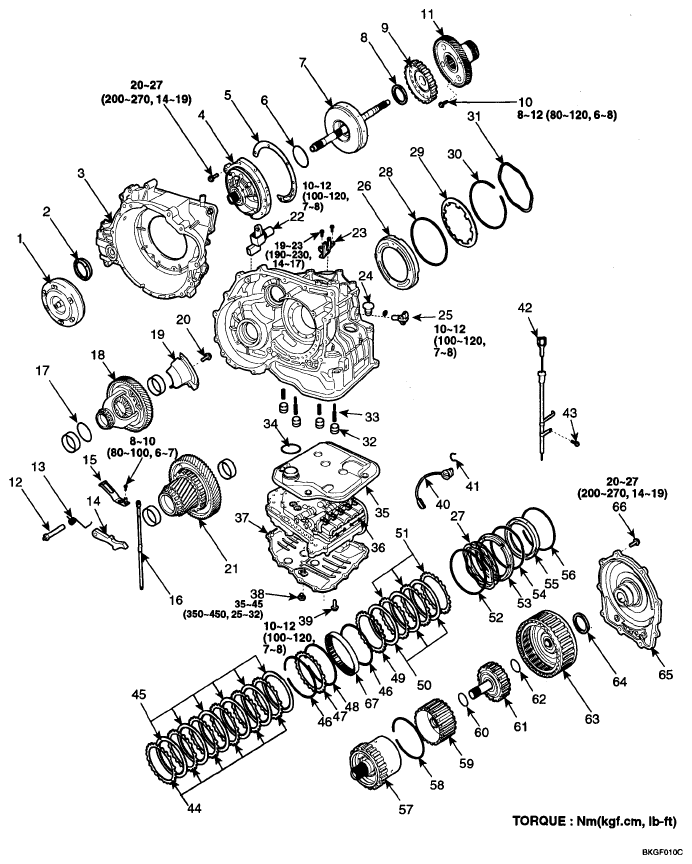

Fig 3: Exploded View Of Automatic Transaxle Components With Torque Specifications
G04864671Courtesy of KIA MOTORS AMERICA, INC.

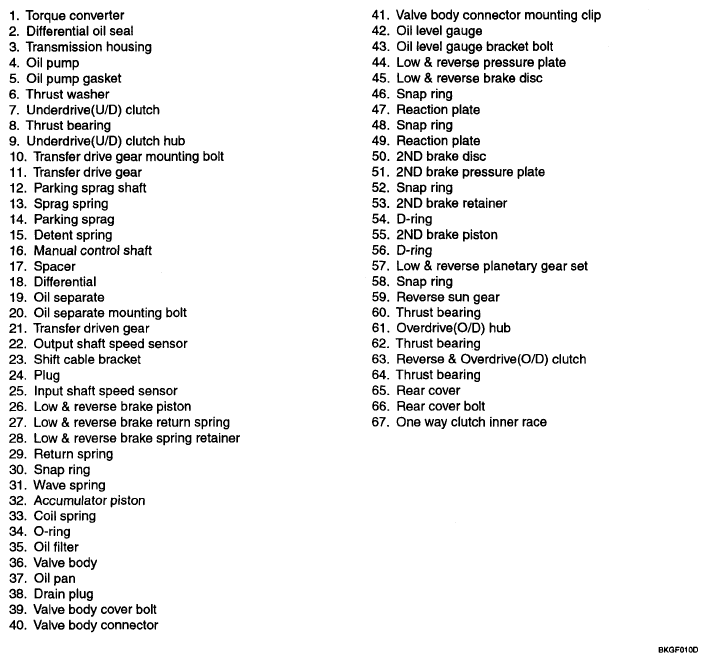

Fig 4: Identifying Automatic Transaxle Components
G04864672Courtesy of KIA MOTORS AMERICA, INC.
