Input Speed Sensor: Removal

  1. Remove the battery terminal.
  2. Remove the battery and battery tray.
  3. Remove the air duct.
  4. Remove the air cleaner assembly. Refer to AUTOMATIC TRANSAXLE-REMOVAL/INSTALLATION  procedures.
  5. Remove the input shaft speed sensor connector (A).

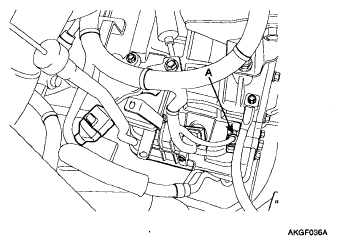

    Fig 1: Locating Input Shaft Speed Sensor Connector (A)
    G04864717Courtesy of KIA MOTORS AMERICA, INC.
  6. Remove the input shaft speed sensor (A).
    Fig 2: Identifying Input Shaft Speed Sensor (A)
    G04864718Courtesy of KIA MOTORS AMERICA, INC.
