UNDERDRIVE Clutch: Components

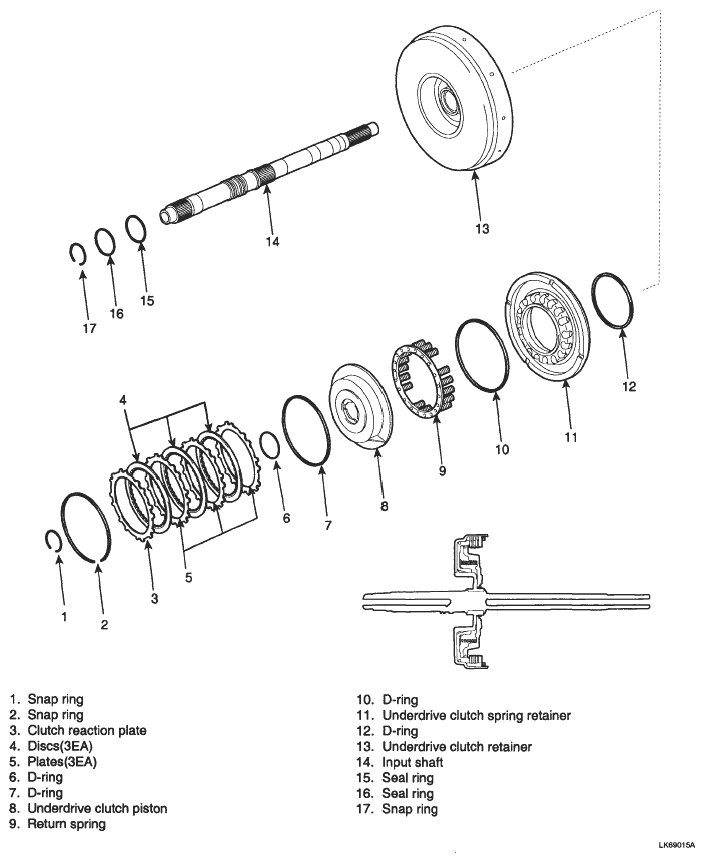

Fig 1: Identifying Underdrive Clutch Components
G04864127Courtesy of KIA MOTORS AMERICA, INC.
