Transfer Driven Gear: Components

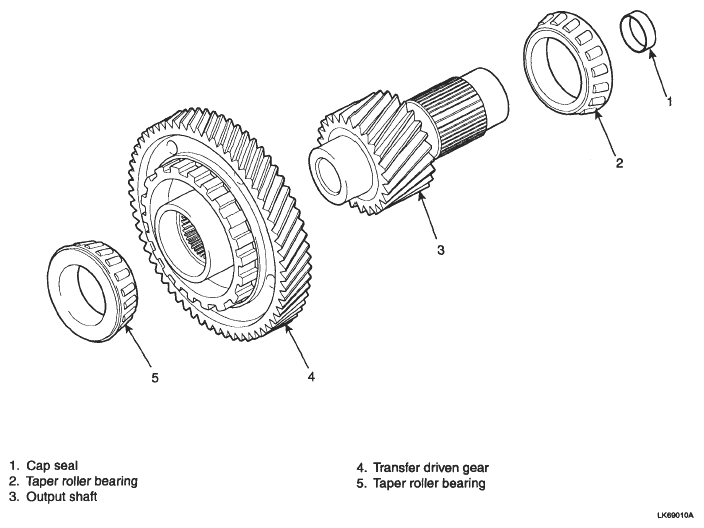

Fig 1: Identifying Transfer Driven Gear Components

G04864100

Courtesy of KIA MOTORS AMERICA, INC.
