Transfer Drive Gear: Components

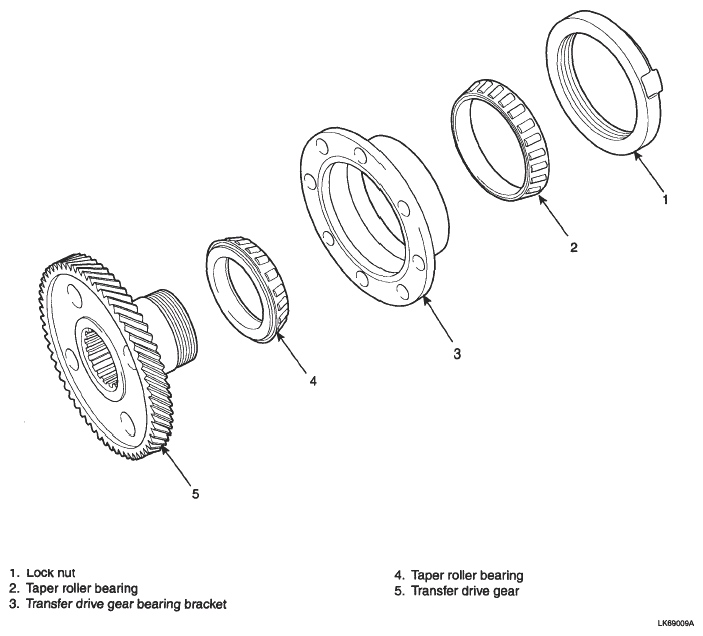

Fig 1: Identifying Transfer Drive Gear Components

G04864091

Courtesy of KIA MOTORS AMERICA, INC.
