Planetary Gear Set: Components

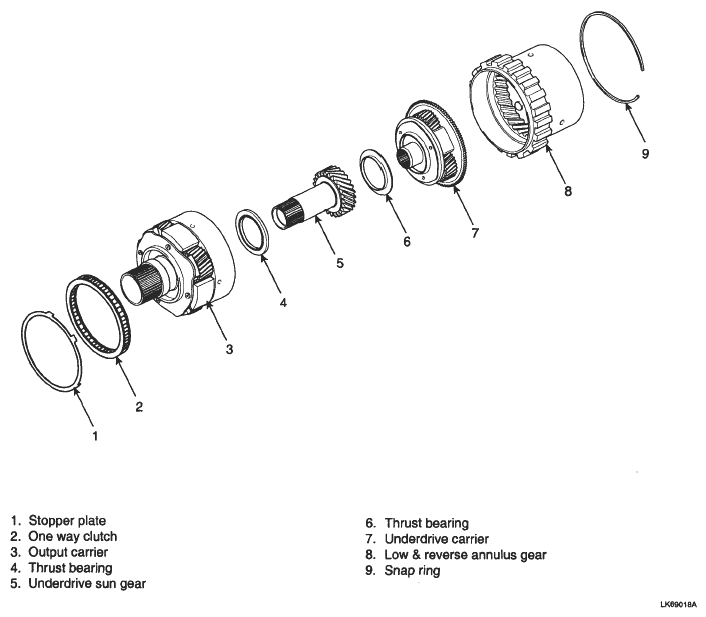

Fig 1: Identifying Planetary Gear Set Components

G04864076

Courtesy of KIA MOTORS AMERICA, INC.
