Home >> Kia >> 2008 >> Spectra5 2.0 1, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle ( A4CF2) >> Automatic Transaxle System >> Differential >> Components

Automatic Transaxle System: Differential: Components

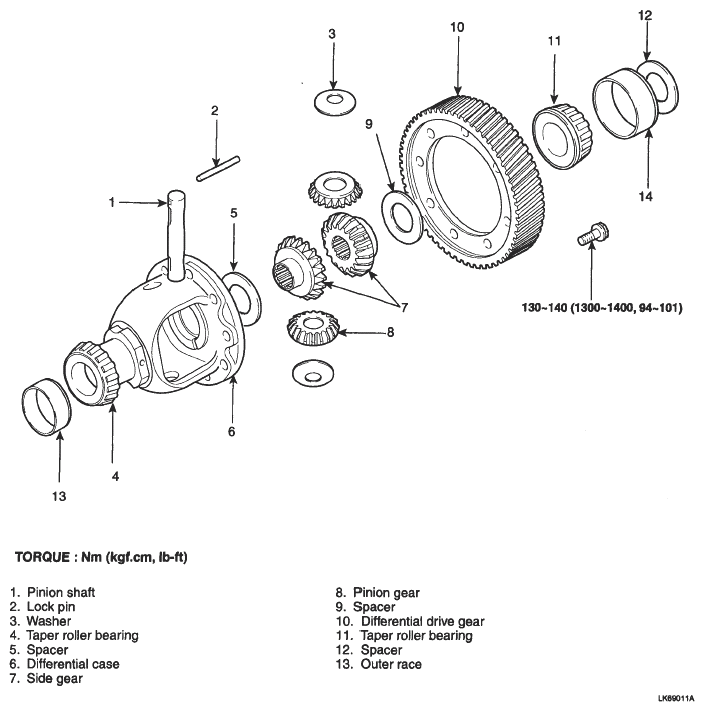

Fig 1: Differential Replacement Components With Torque Specifications

G04864107

Courtesy of KIA MOTORS AMERICA, INC.
