Automatic Transaxle: Components

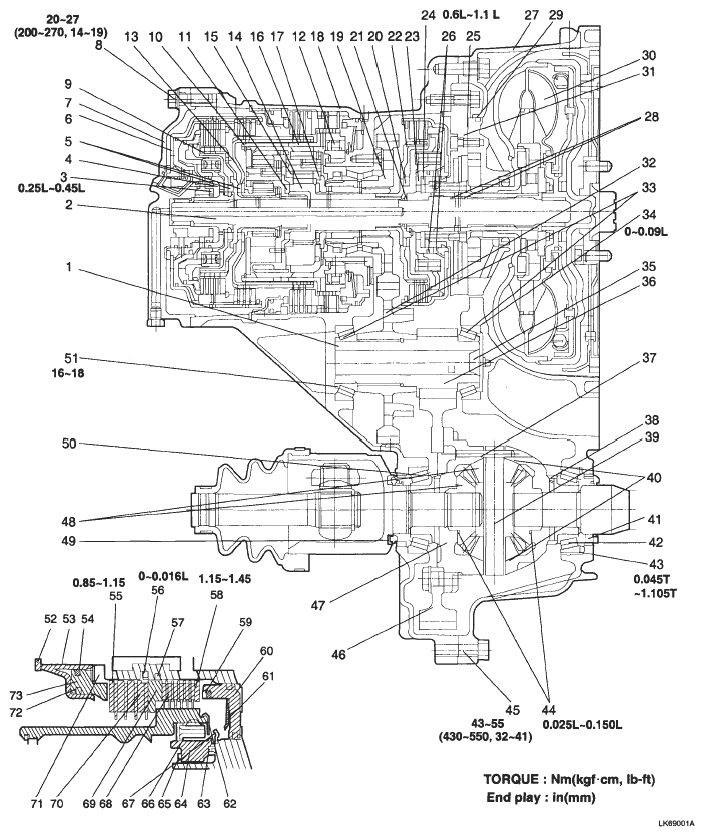

Fig 1: Automatic Transaxle Replacement Components With Torque Specifications
G04863935Courtesy of KIA MOTORS AMERICA, INC.

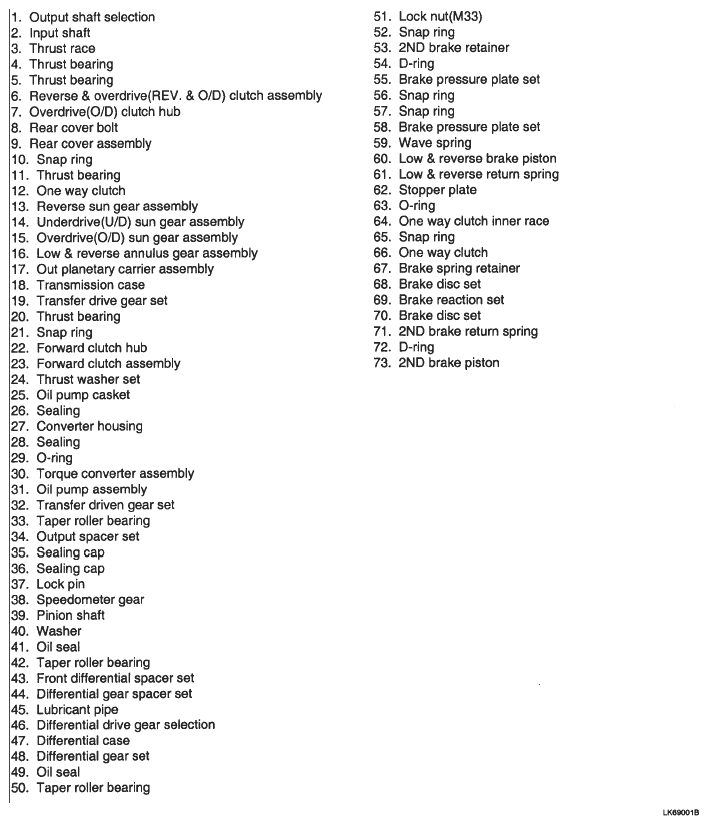

Fig 2: Automatic Transaxle Components Legends
G04863936Courtesy of KIA MOTORS AMERICA, INC.

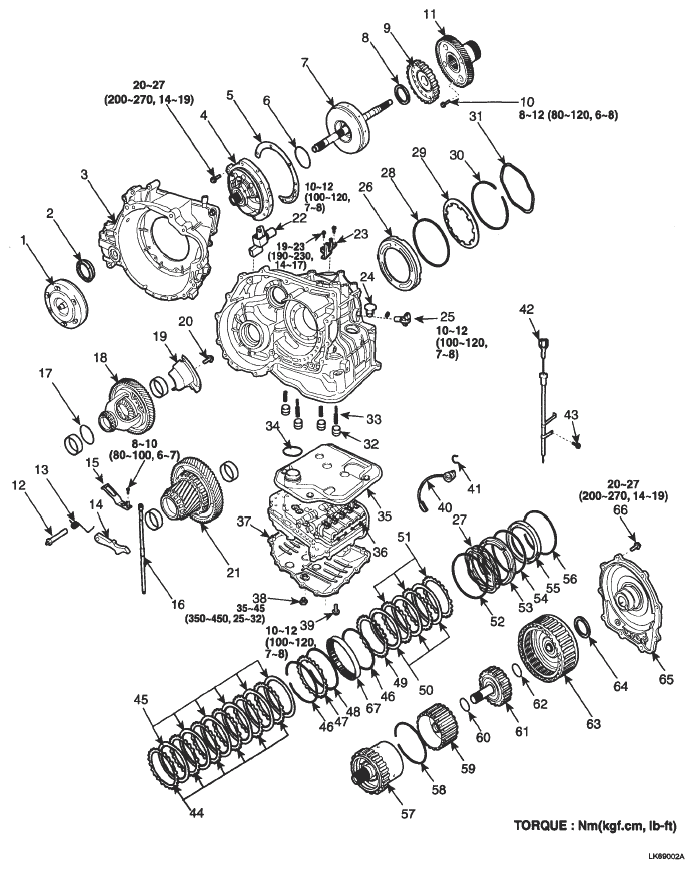

Fig 3: Exploded View Of Automatic Transaxle Components With Torque Specifications
G04863937Courtesy of KIA MOTORS AMERICA, INC.

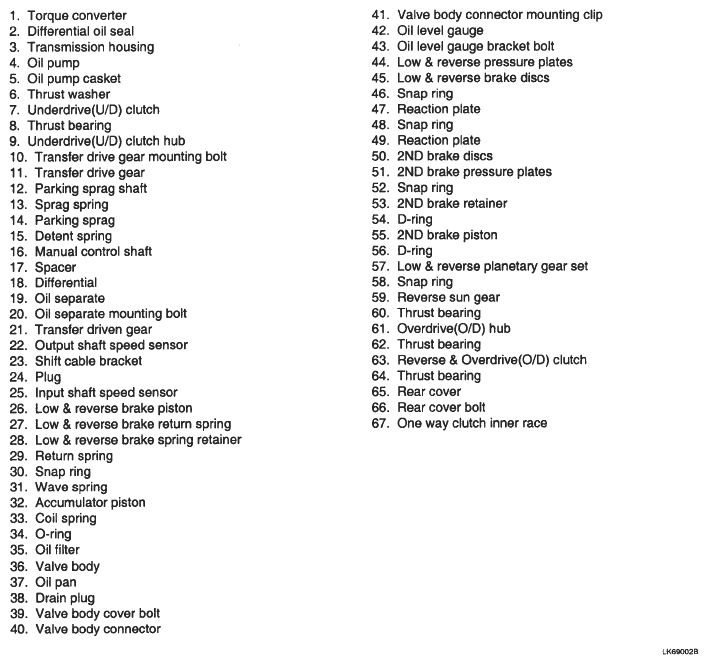

Fig 4: Automatic Transaxle Components Legends
G04863938Courtesy of KIA MOTORS AMERICA, INC.
