Ignition Coil

  1. Remove the engine cover.
  2. Disconnect the spark plug cables and the ignition coil connector.

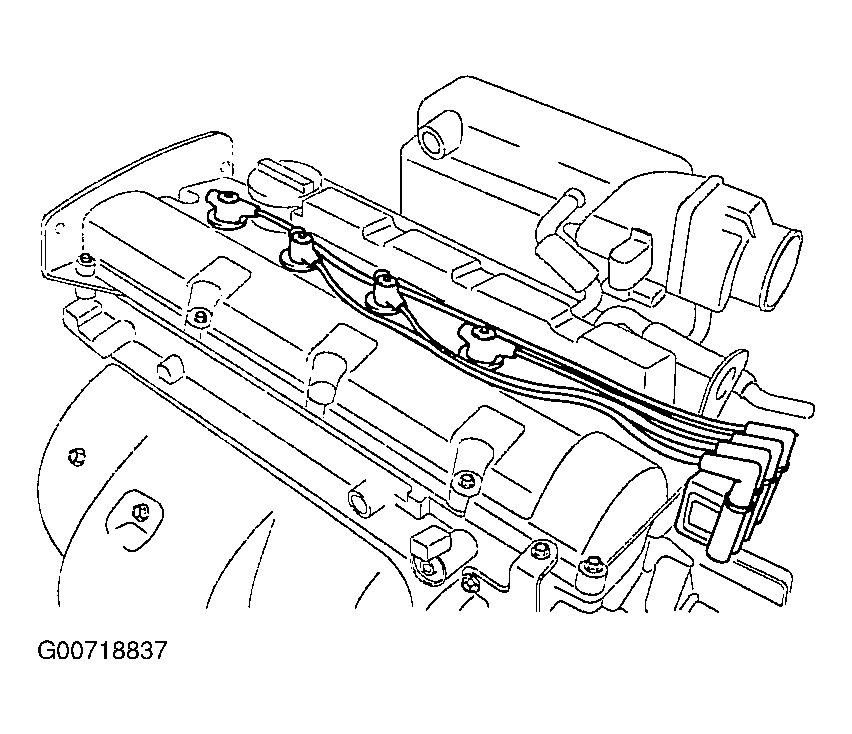

    Fig 1: Disconnecting Spark Plug Cables
    G00718837Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the ignition coil (A).
    Fig 2: Removing Ignition Coil
    G00718838Courtesy of KIA MOTORS AMERICA, INC.
  4. Installation is the reverse of removal.
