Timing Belt: Component

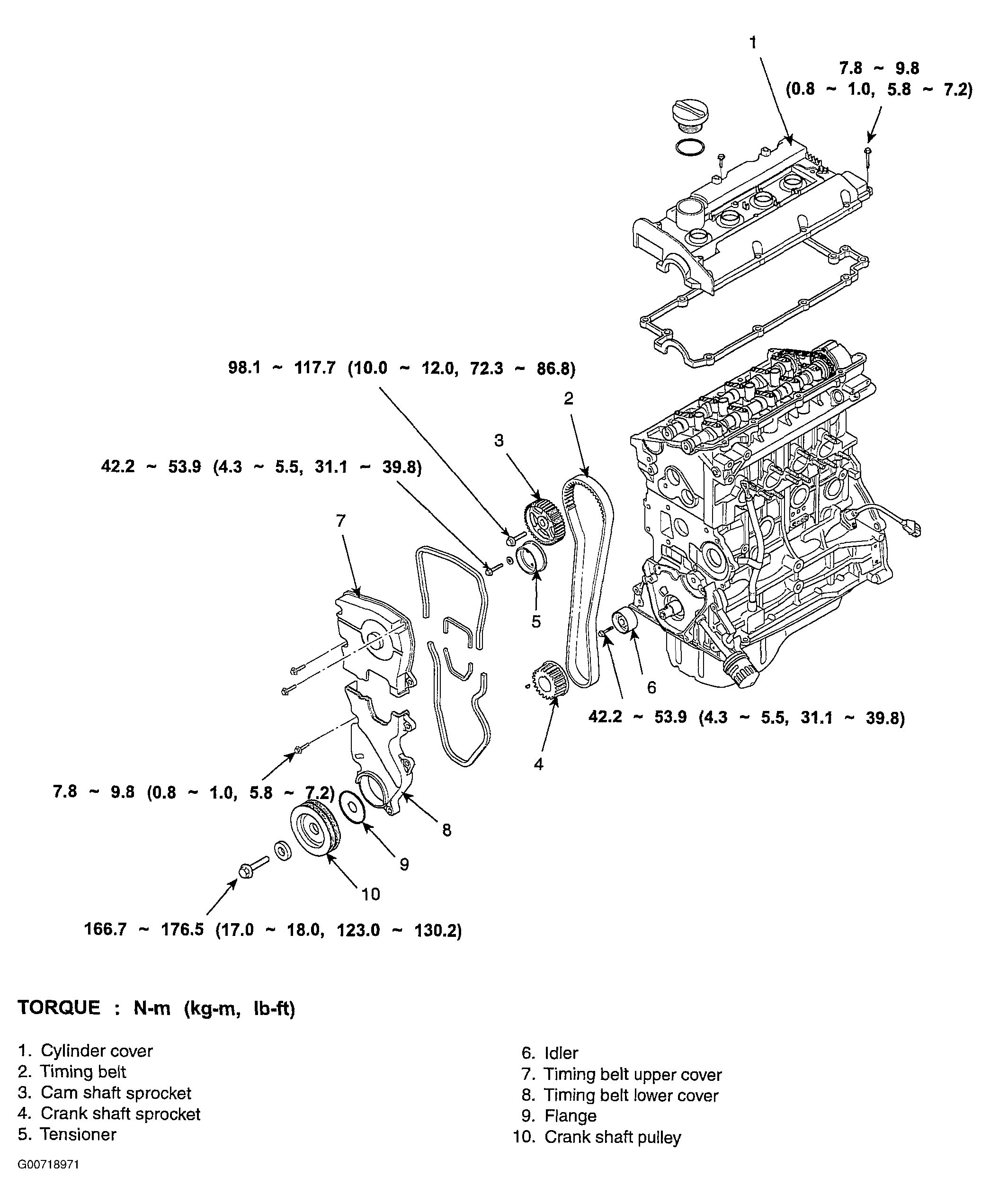

Fig 1: Exploded View Of Timing Belt Components With Torque Specifications

G00718971

Courtesy of KIA MOTORS AMERICA, INC.
