LEMON Manuals
: Even more car manuals for everyone
Home
>>
Kia
>>
2008
>>
Spectra5 2.0 1, Automatic
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Lubrication System
>>
Engine Overhaul
>>
General
>>
Special Service Tools
Special Service Tools

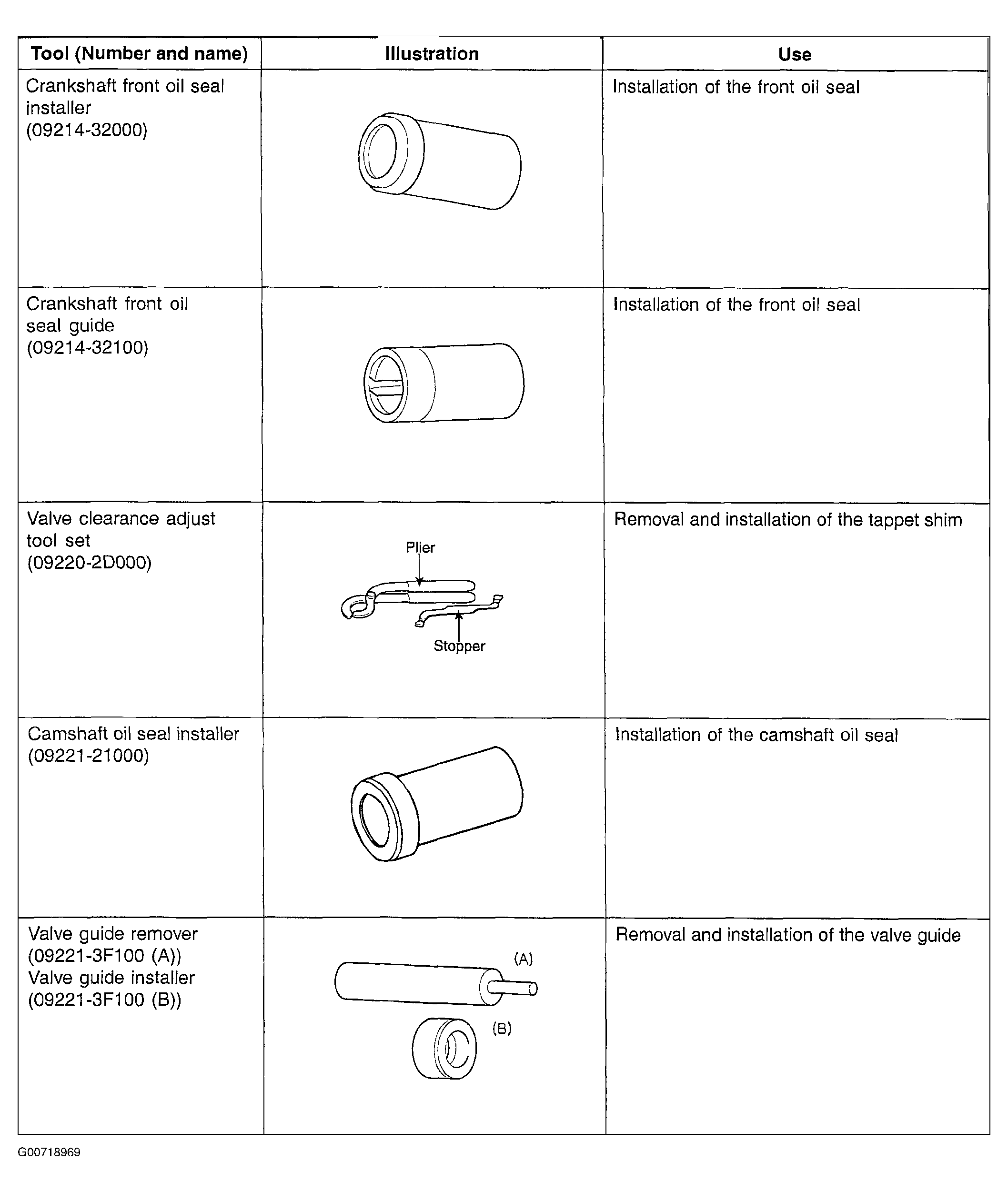

Fig 1: Identifying Service Tools (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

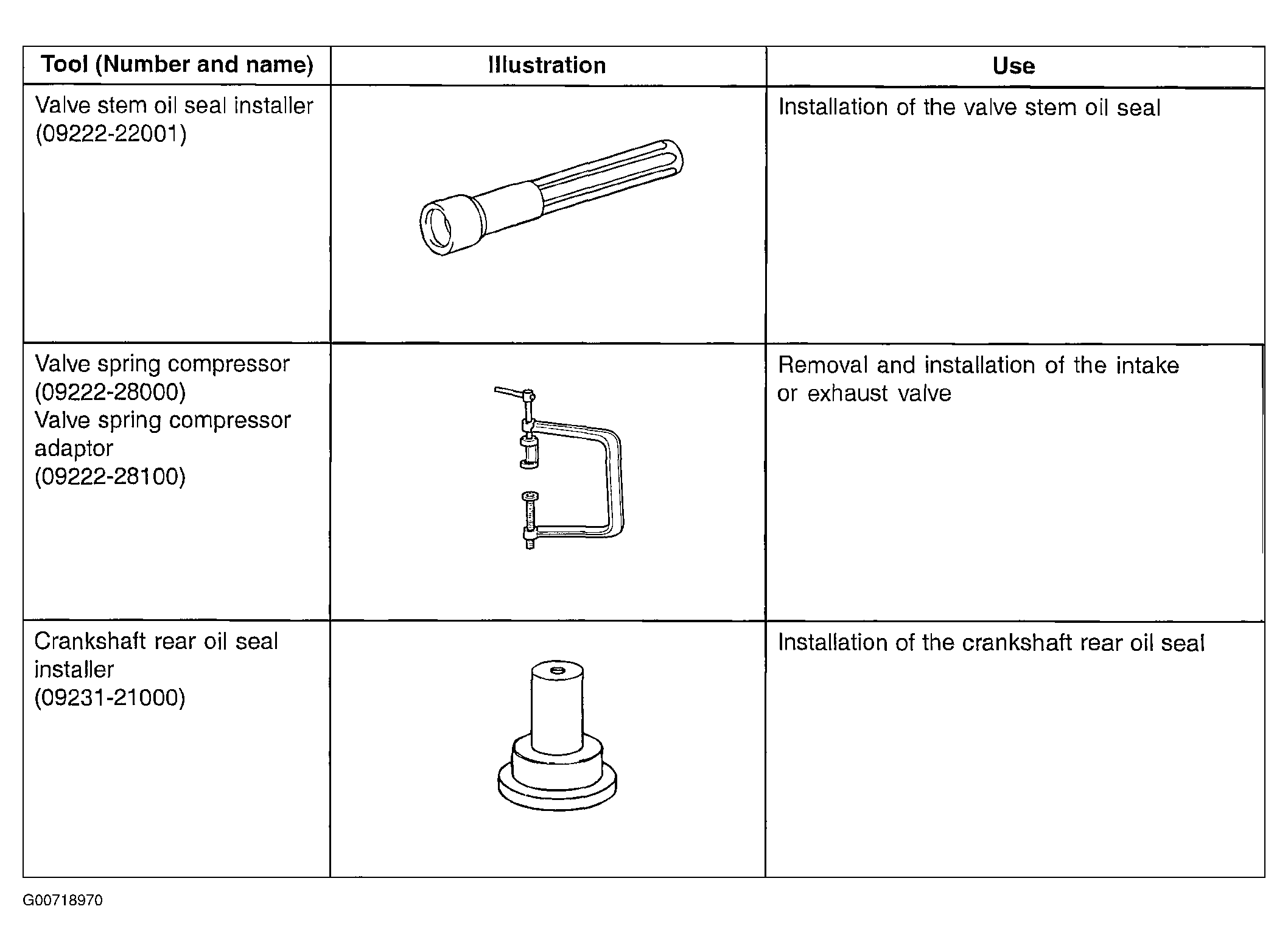

Fig 2: Identifying Service Tools (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
