Spectra5 2.0 1, Automatic
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Auxiliary Emission Control Systems
>>
General - Emissions Control System
>>
Schematic Drawing
Schematic Drawing

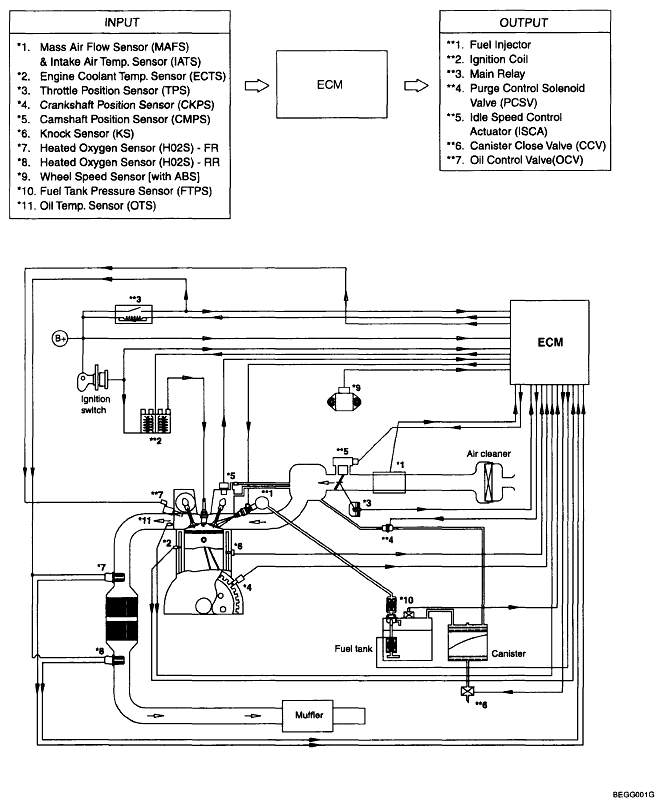

Fig 1: Emission Control System Schematic Drawing
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
