Brush Holder Test

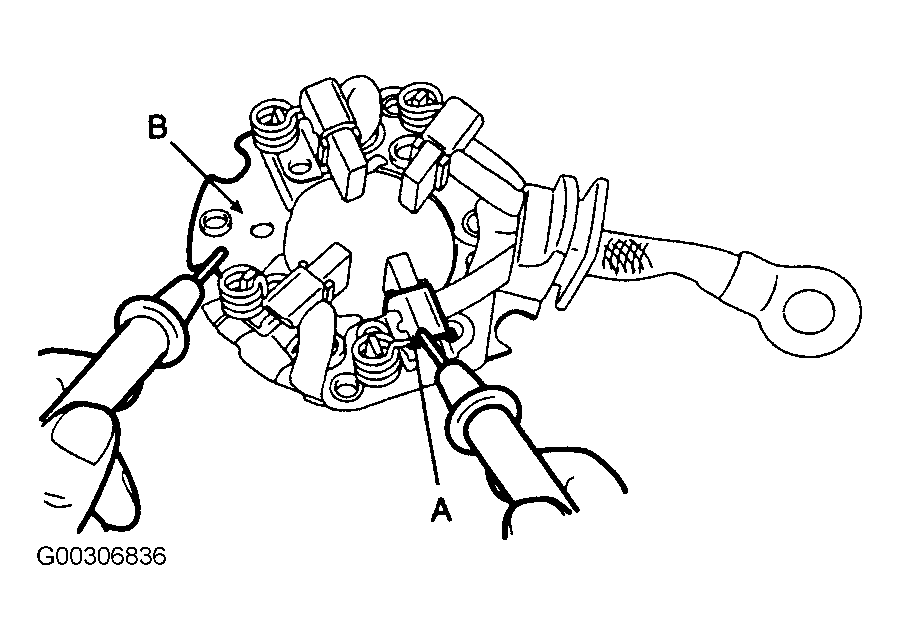

- Check that there is no continuity between the (+) brush holder "A" and (-) brush holder "B". See Fig 1. If there is no continuity, replace the brush holder assembly.
- Insert the brush "A" into the brush holder and bring the brush into contact with the commutator, then attach a spring scale "B" to the spring "C". See Fig 2. Measure the spring tension at the moment the spring lifts off the brush. See STARTER SPECIFICATIONS .
- Pry back each brush spring "A" with a screwdriver, then position the brush "B" about halfway out of its holder and release the spring to hold it there. See Fig 3.
- Install the armature in the housing and install the brush holder. Next, pry back each brush spring again and push the brush down until it seats against the commutator, then release the spring against the end of the brush. See Fig 4.NOTE: To seat new brushes, slip a strip of #500 or #600 sandpaper, with the grit side up, between the commutator and each brush and smoothly rotate the armature. The contact surface of the brushes will be sanded to the same contour as the commutator.
