Electrical Component Locator: Switches
SWITCHES LOCATION
| Component | Location |
|---|---|

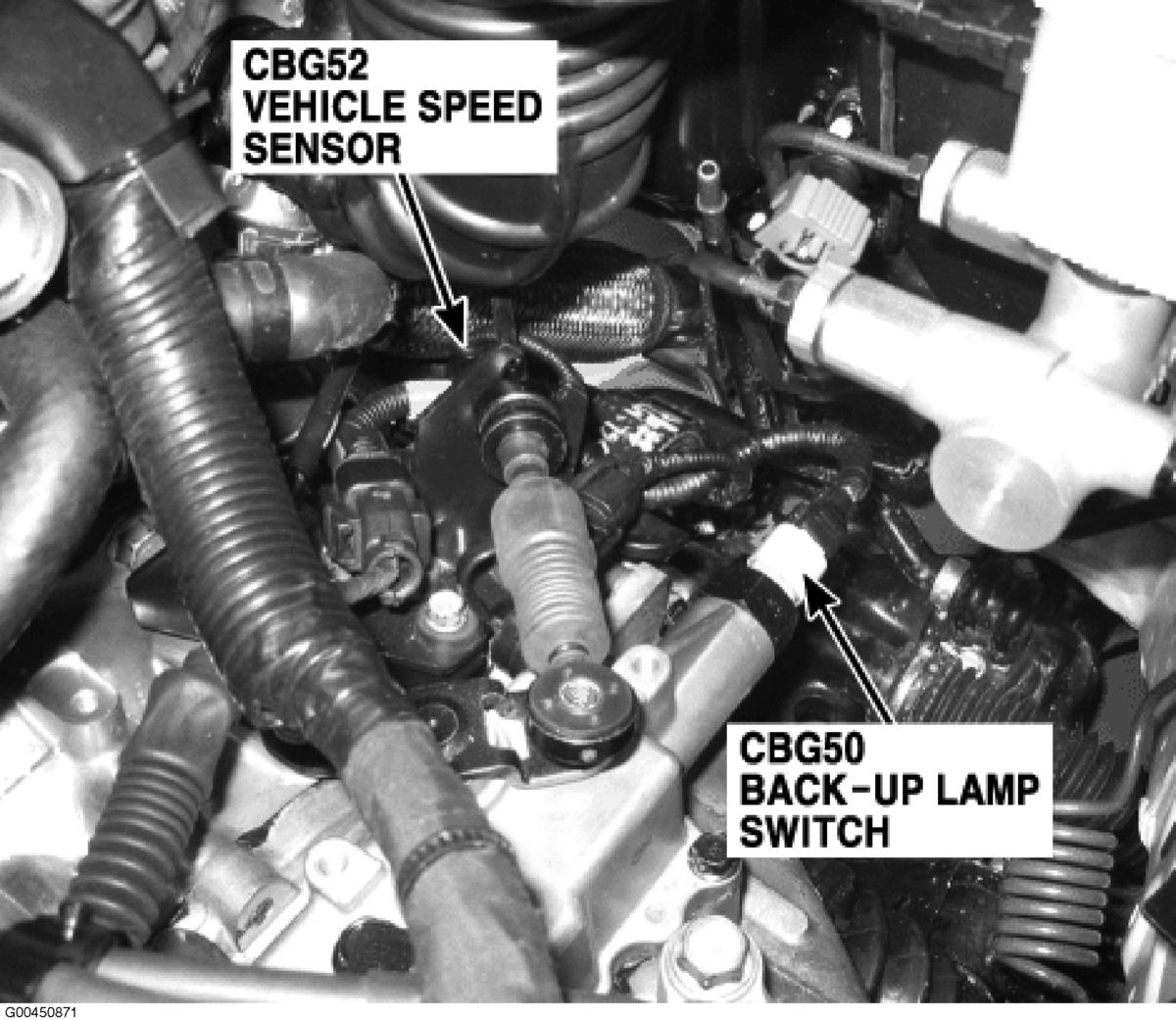

| Back-Up Lamp Switch | Top of transaxle. See Figure. |

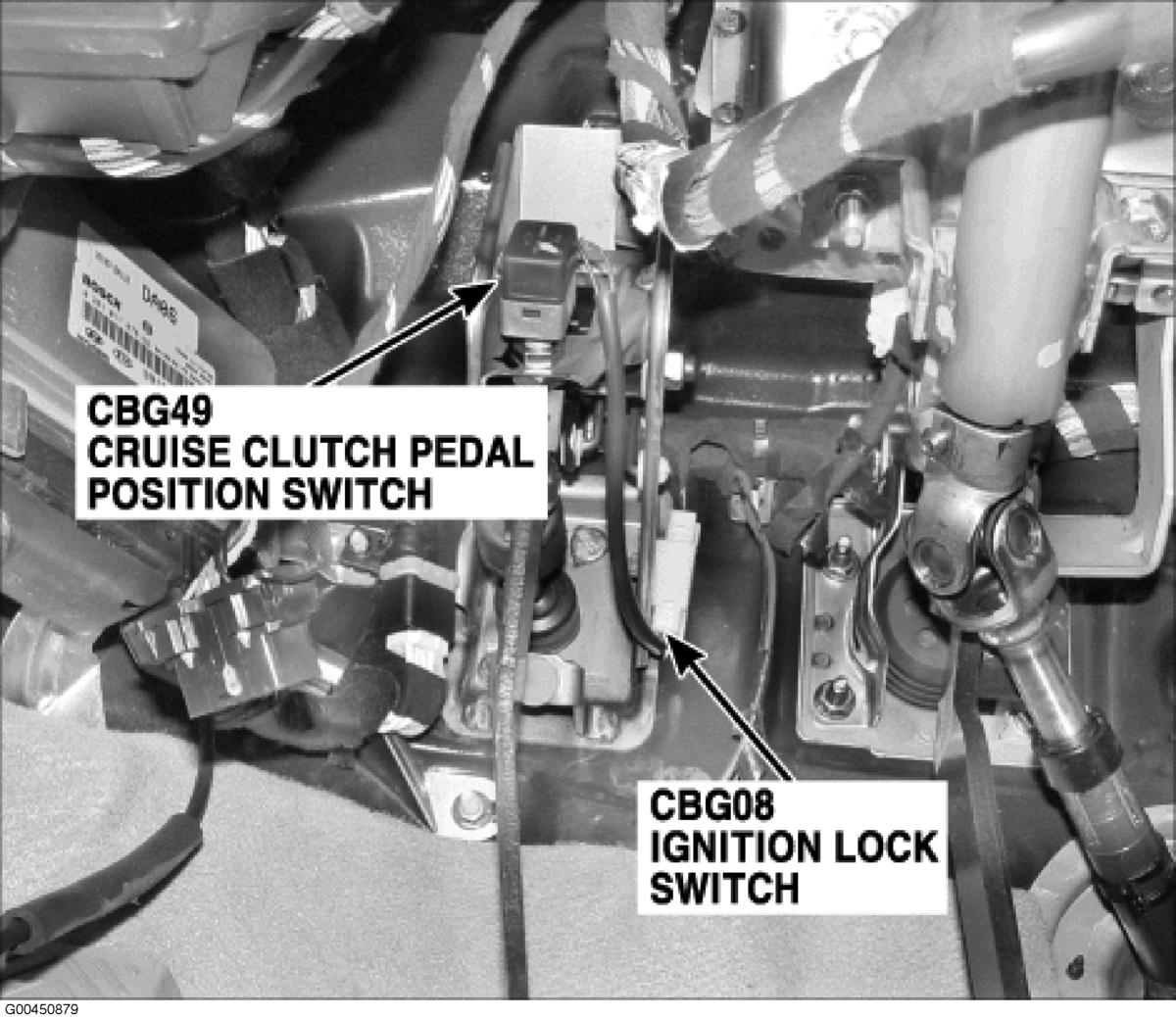

| Cruise Clutch Pedal Position Switch | Above clutch pedal. See Figure. |
| Door Switch (Driver) | In left "B" pillar. See Figure. |
| Door Switch (Passenger) | In right "B" pillar. See Figure. |

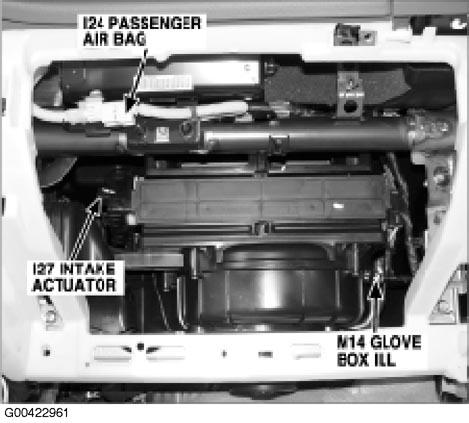

| Glove Box Ill (Switch) | Behind right side of dash. See Figure. |

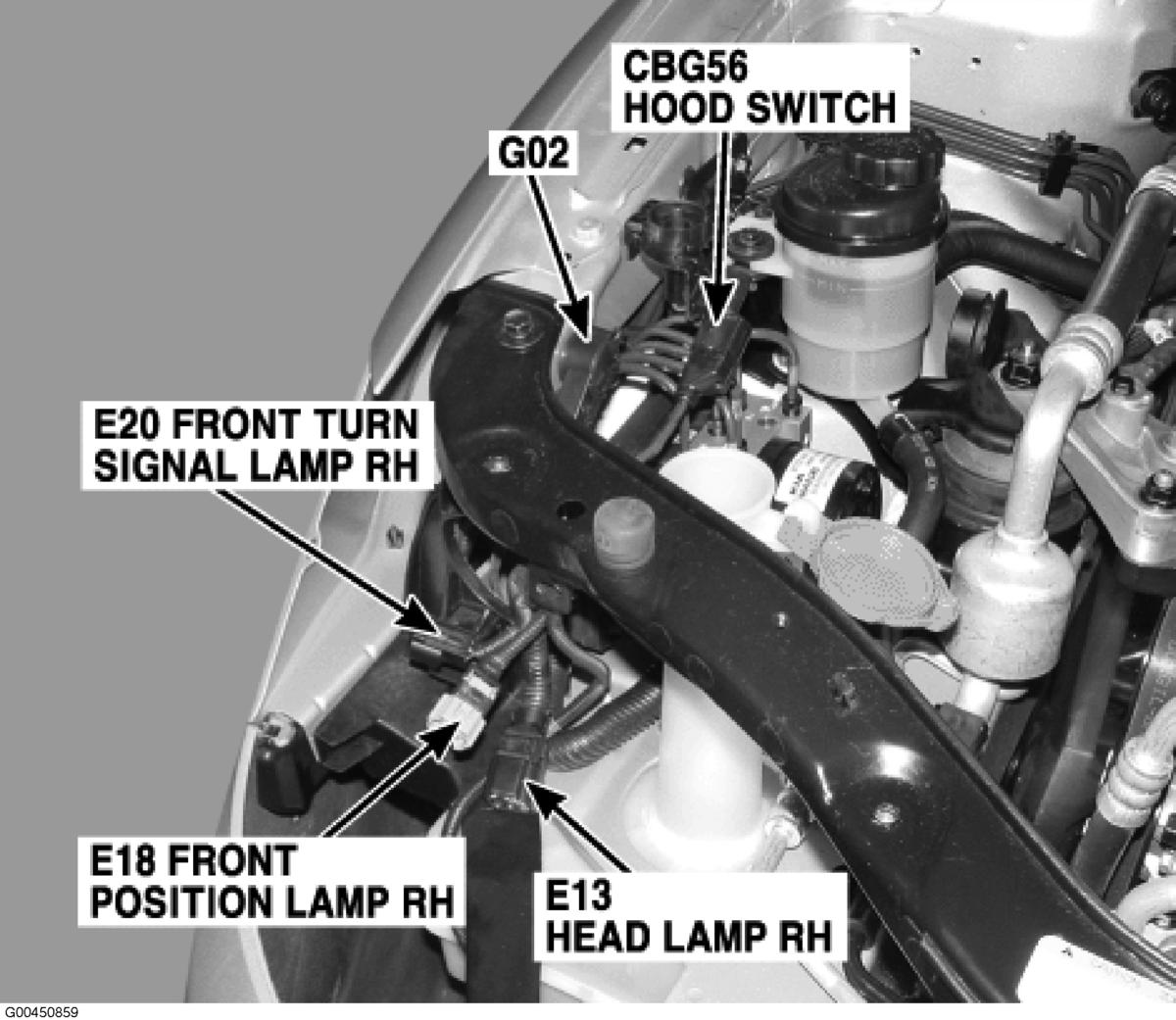

| Hood Switch | Right front corner of engine compartment. See Figure. |

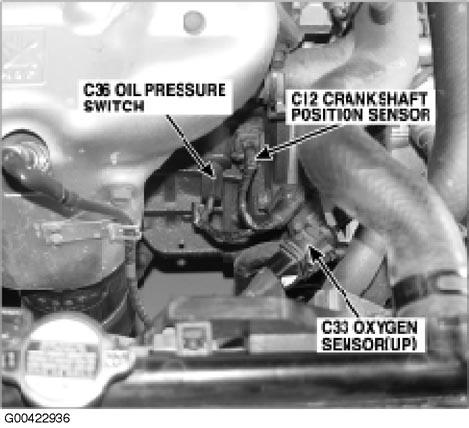

| Oil Pressure Switch | On left rear of engine block. See Figure. |
| Parking Brake Switch | Under center console, on parking brake lever. See Figure. |

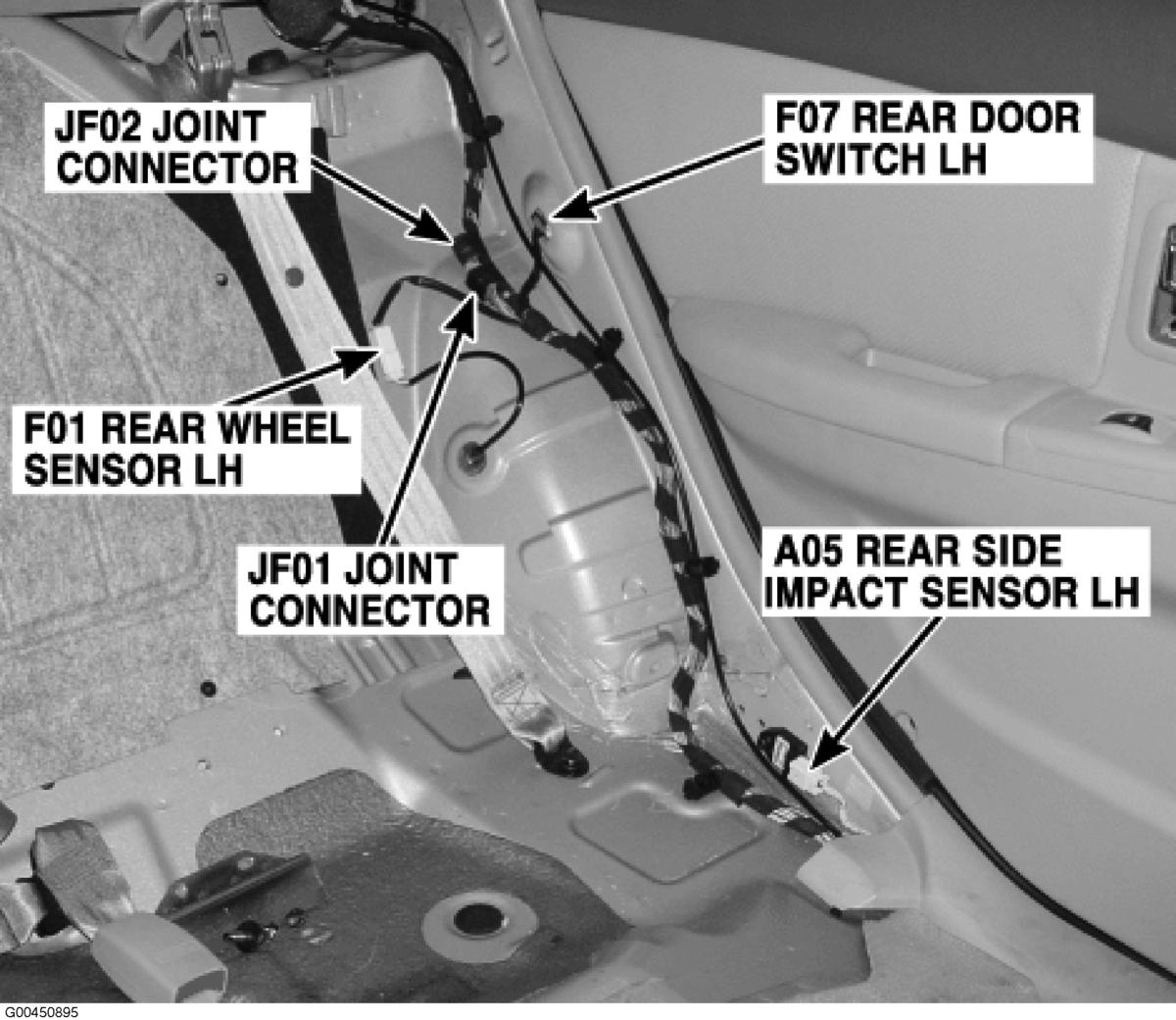

| Rear Door Switch (LH) | In left "C" pillar. See Figure. |

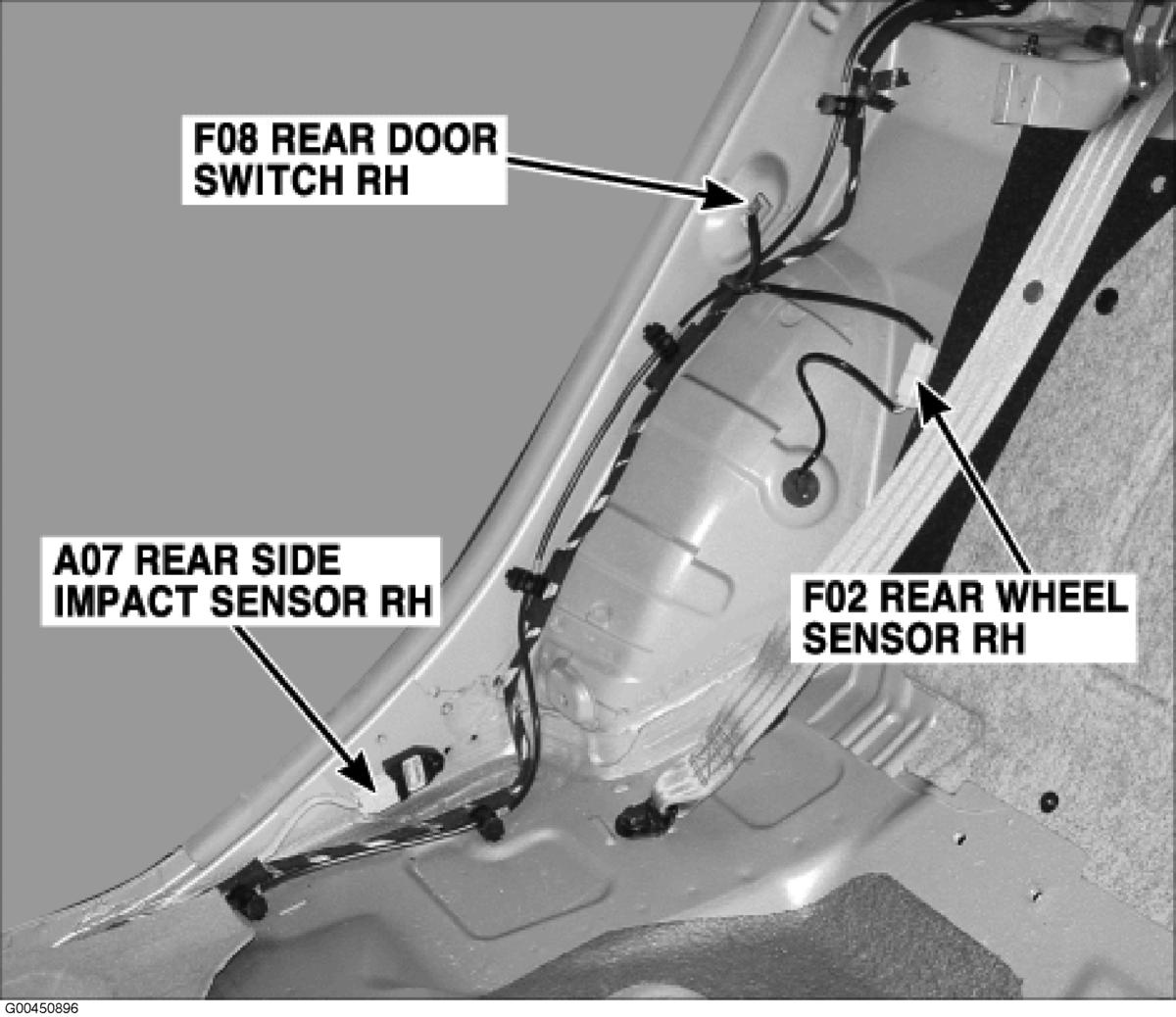

| Rear Door Switch (RH) | In right "C" pillar. See Figure. |

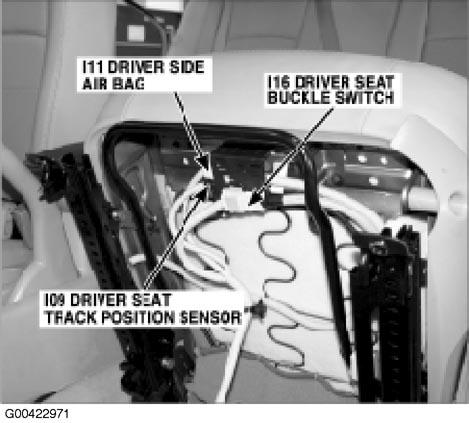

| Seat Belt Buckle Switch (Driver) | In driver's seat belt buckle. See Figure. |

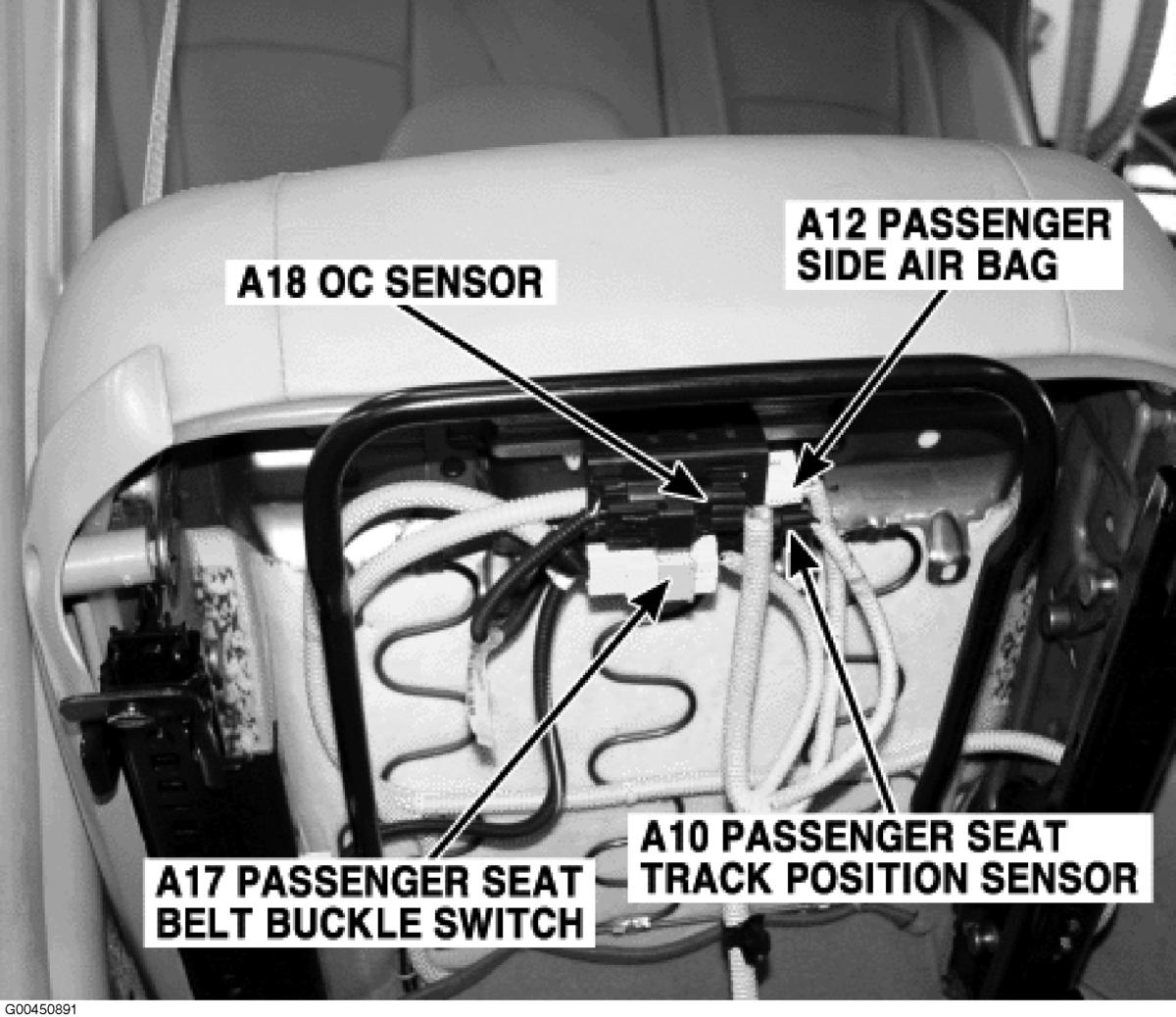

| Seat Belt Buckle Switch (Passenger) | In passenger's seat belt buckle. See Figure. |

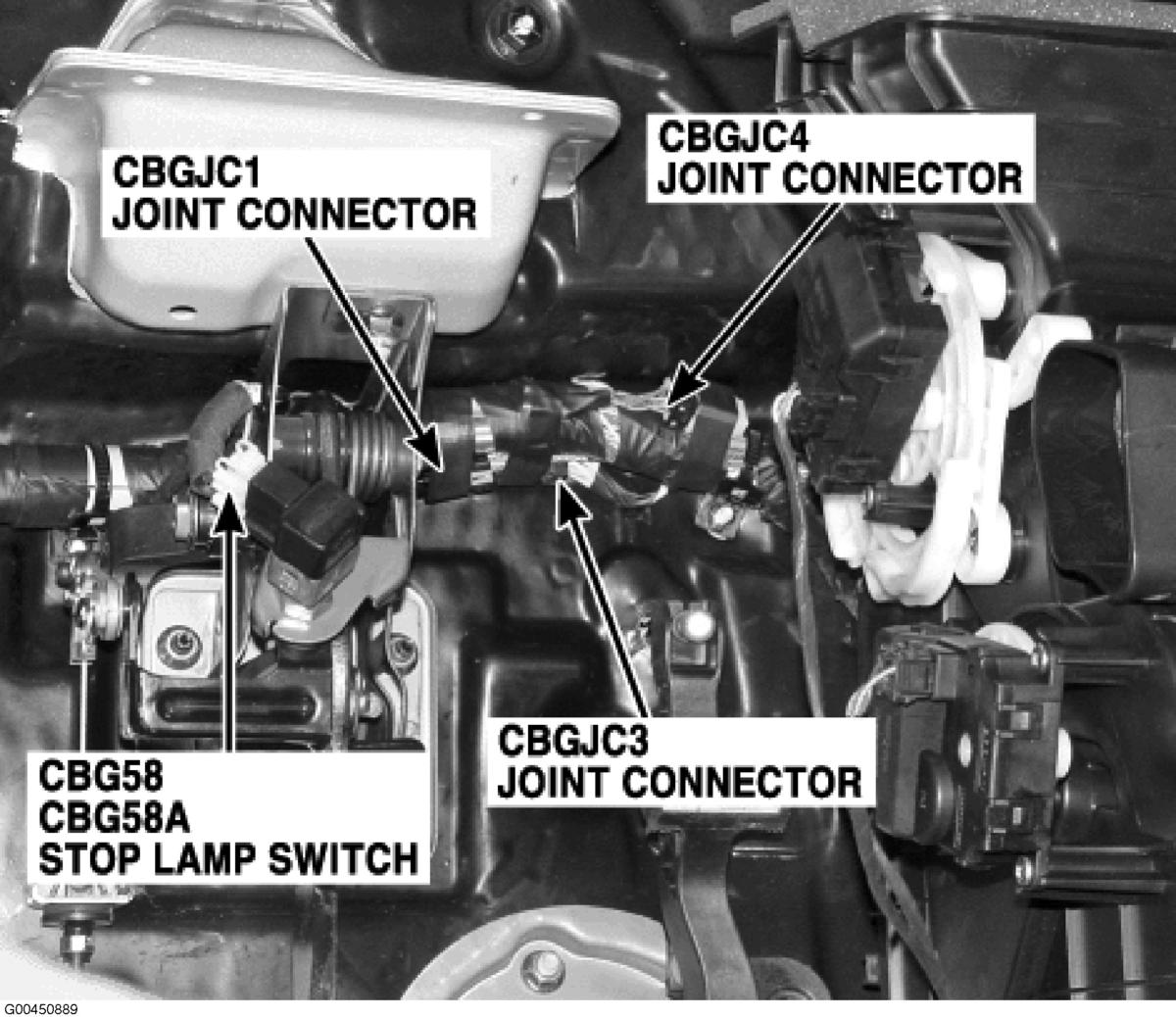

| Stop Lamp Switch | Above brake pedal. See Figure. |
| Tail Gate Open Switch | Center left of tailgate. See Figure. |

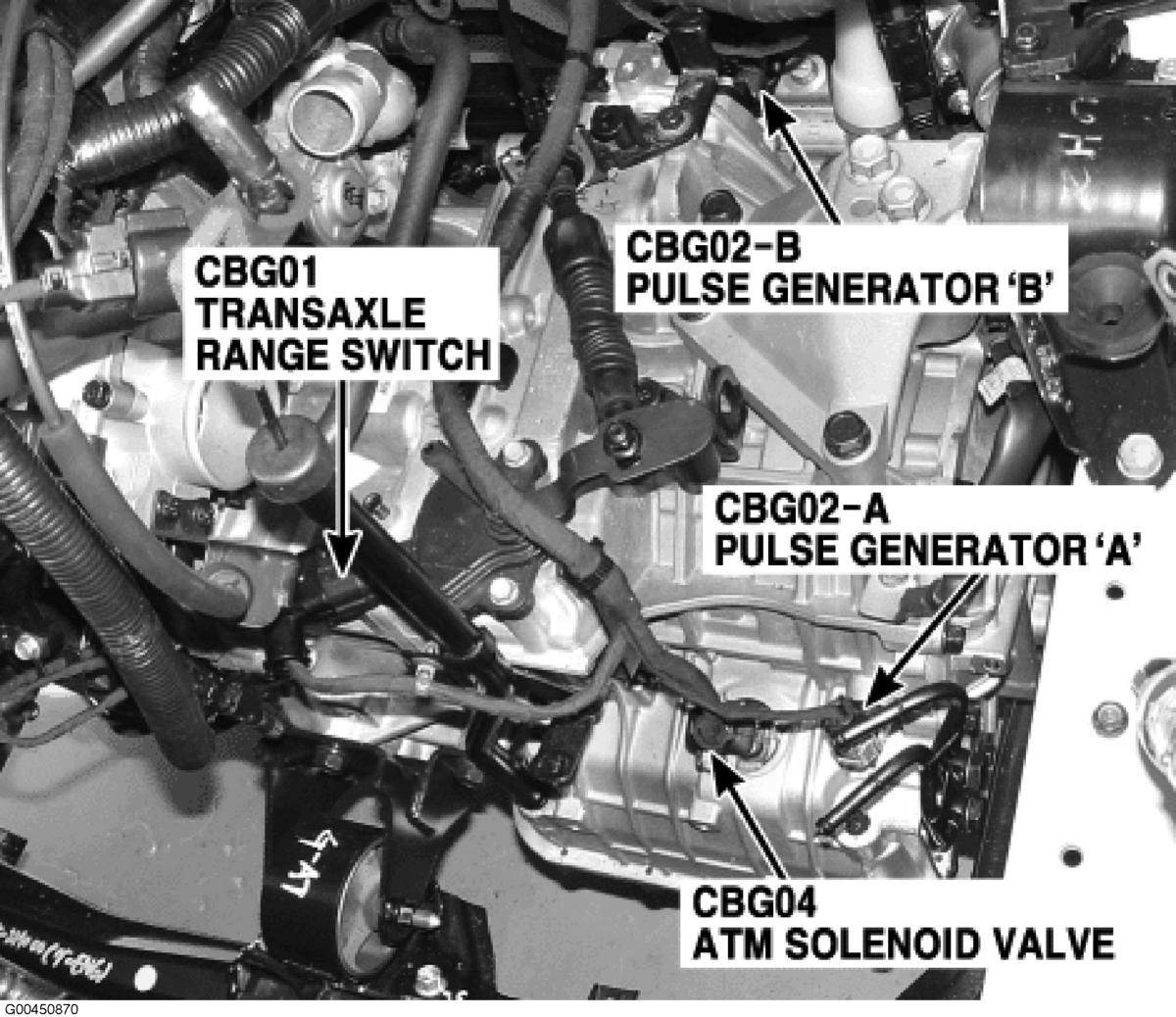

| Transaxle Range Switch | Top of transaxle. See Figure. |

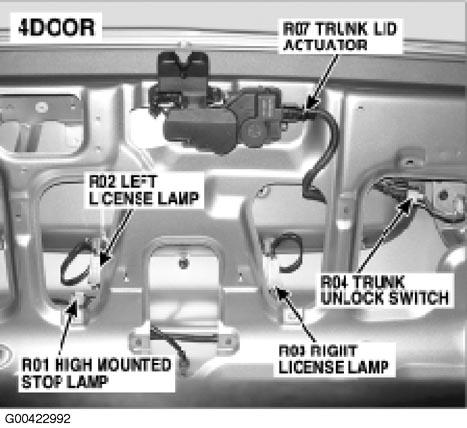

| Trunk Unlock Switch | Center left rear of trunk. See Figure. |

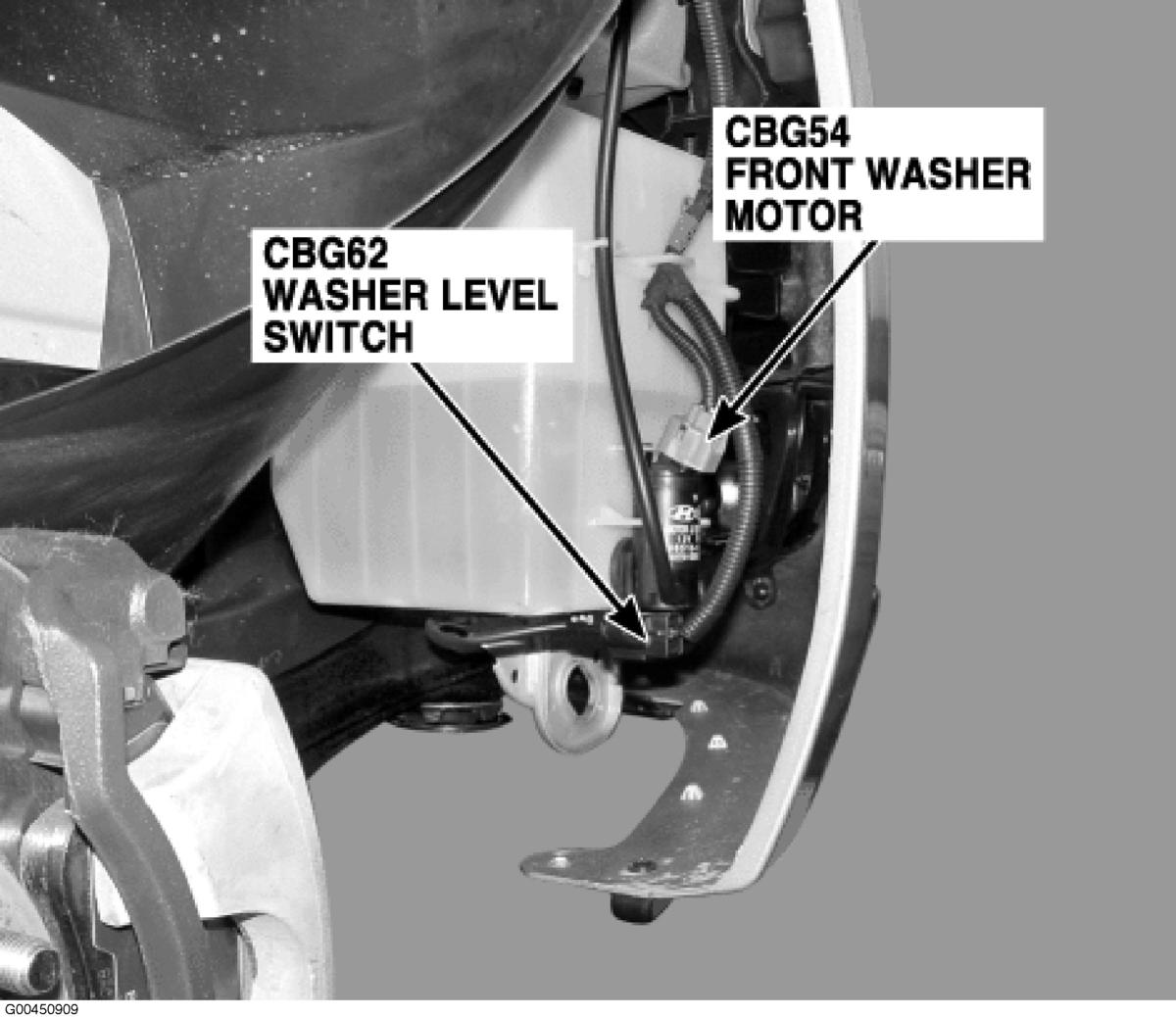

| Washer Level Switch | In washer fluid reservoir. See Figure. |
