Cruise Control Switch Connector End View

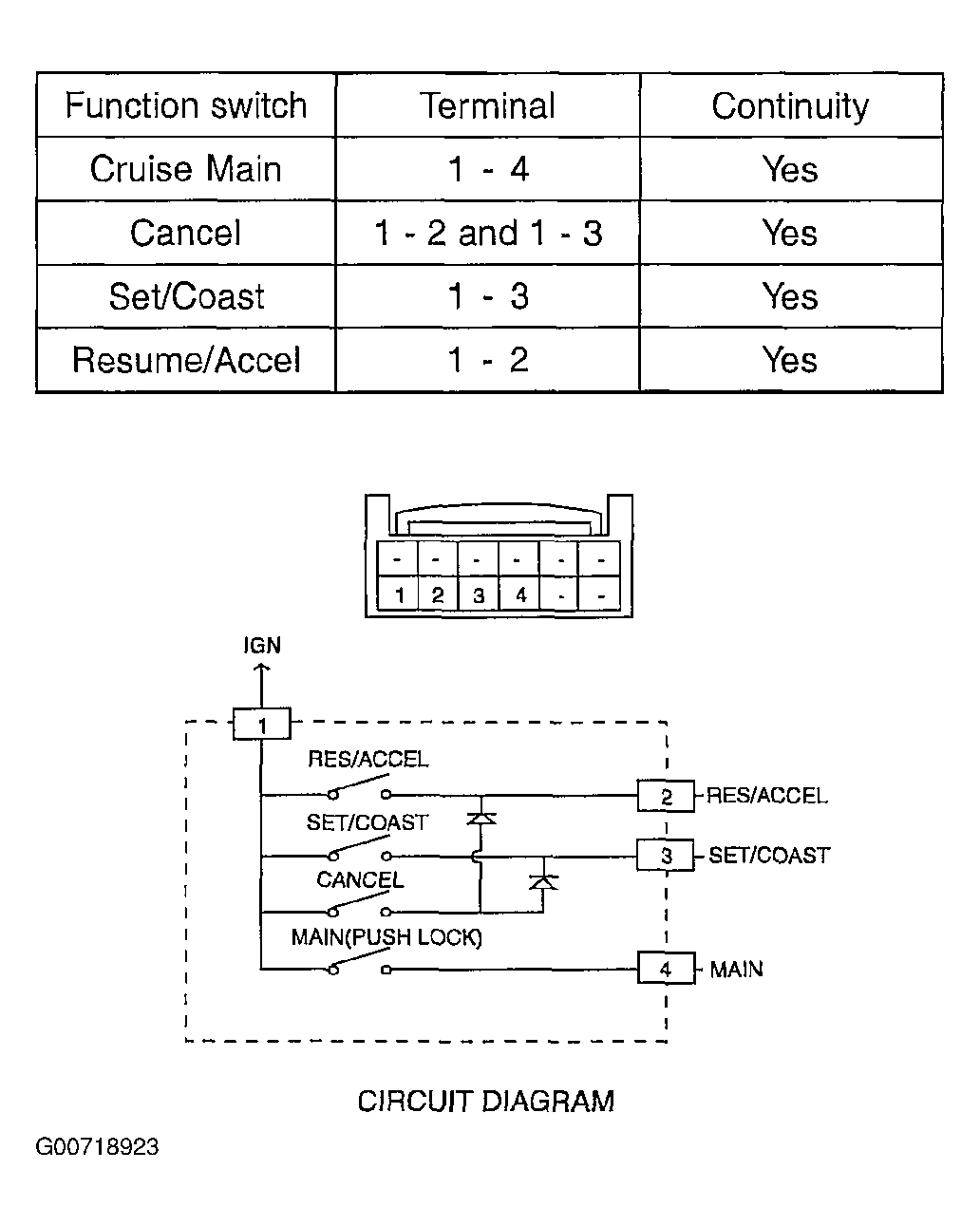

Fig 1: Cruise Control Switch Connector End View

G00718923

Courtesy of KIA MOTORS AMERICA, INC.
