Home >> Kia >> 2008 >> Spectra5 2.0 1, Automatic >> Repair and Diagnosis >> Brakes >> Abs/TCS (Anti Lock/Traction Control) >> Removal & Installation >> Wheel Speed Sensor >> Components

Wheel Speed Sensor: Components

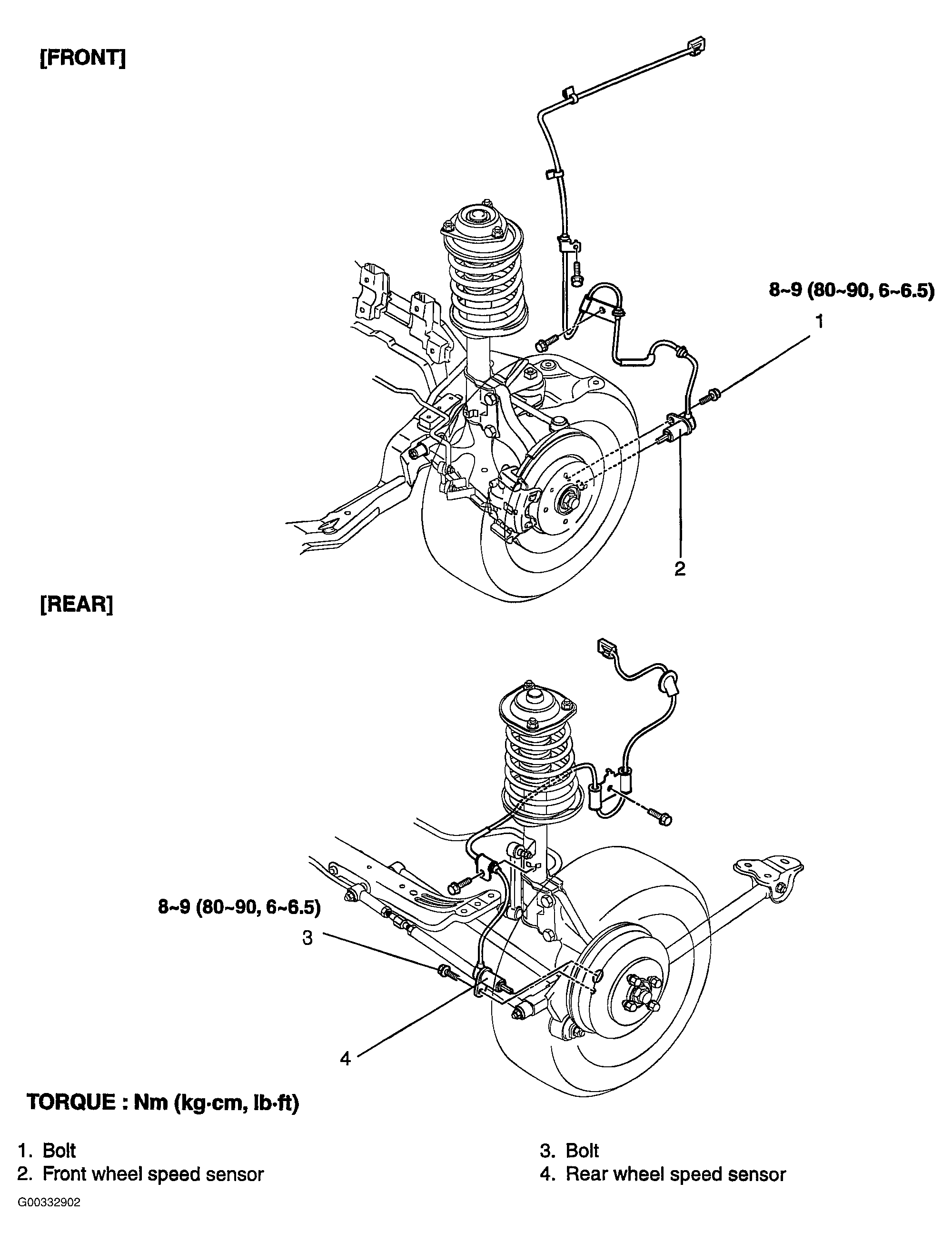

Fig 1: Wheel Speed Sensor Components With Torque Specifications

G00332902

Courtesy of KIA MOTORS AMERICA, INC.
