Home >> Kia >> 2008 >> Spectra5 2.0 1, Automatic >> Repair and Diagnosis >> Brakes >> Abs/TCS (Anti Lock/Traction Control) >> Removal & Installation >> Anti-Lock Braking System Control Module >> Components

Anti-Lock Braking System Control Module: Components

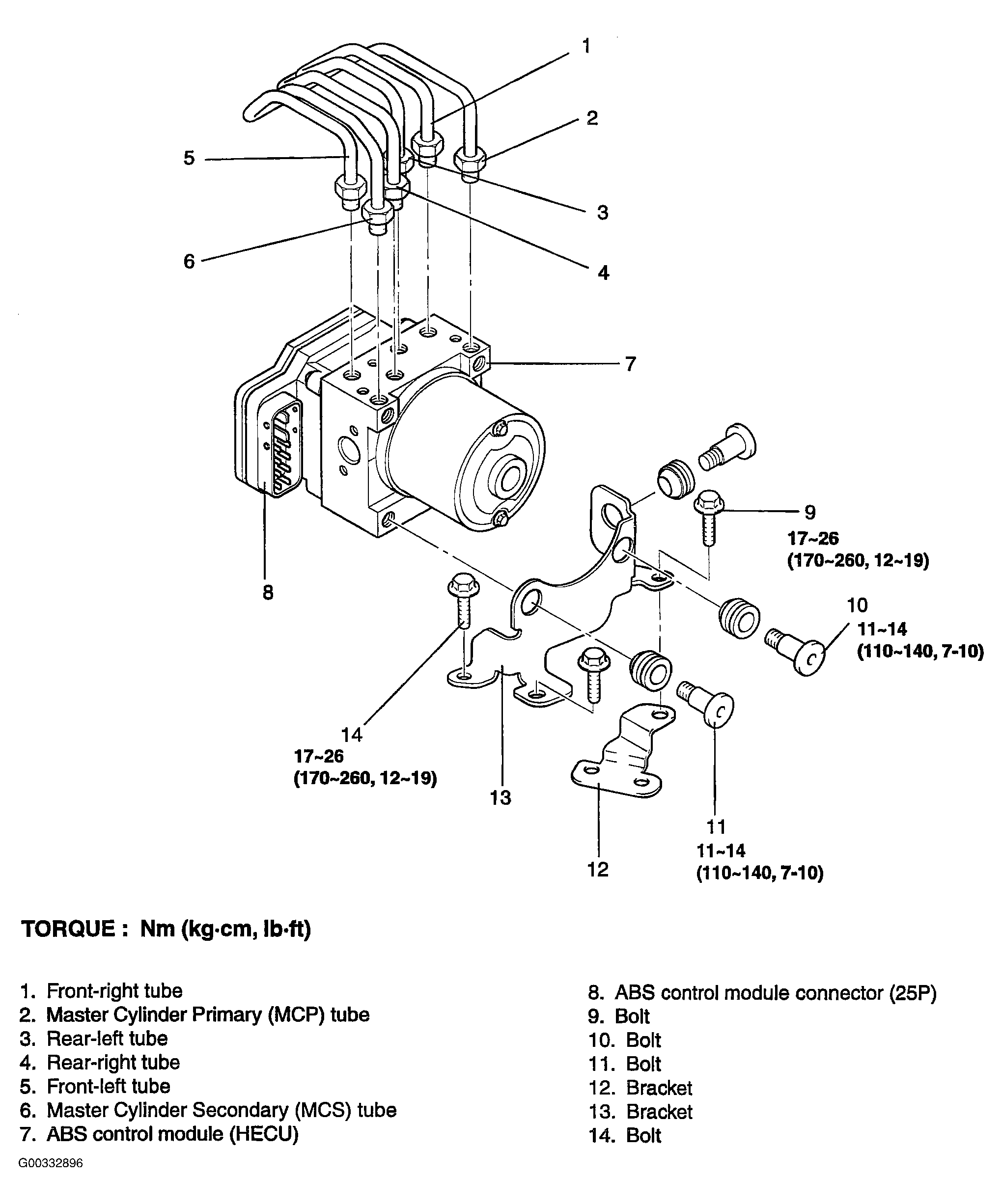

Fig 1: System Control Module Replacement Components With Torque Specifications

G00332896

Courtesy of KIA MOTORS AMERICA, INC.
