Circuit Diagram

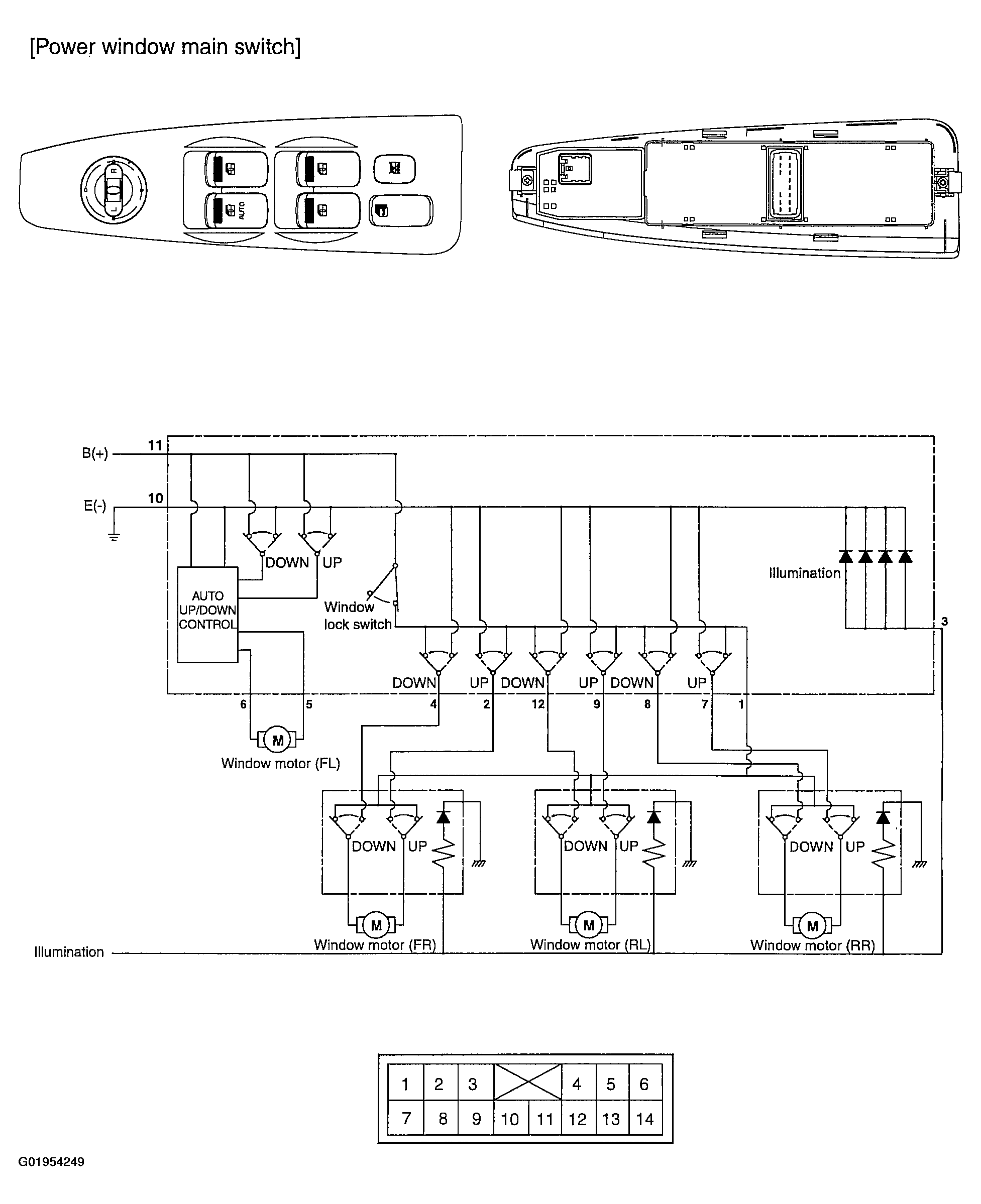

Fig 1: Identifying Main Power Window Switch & Circuit Diagram
G01954249Courtesy of KIA MOTORS AMERICA, INC.

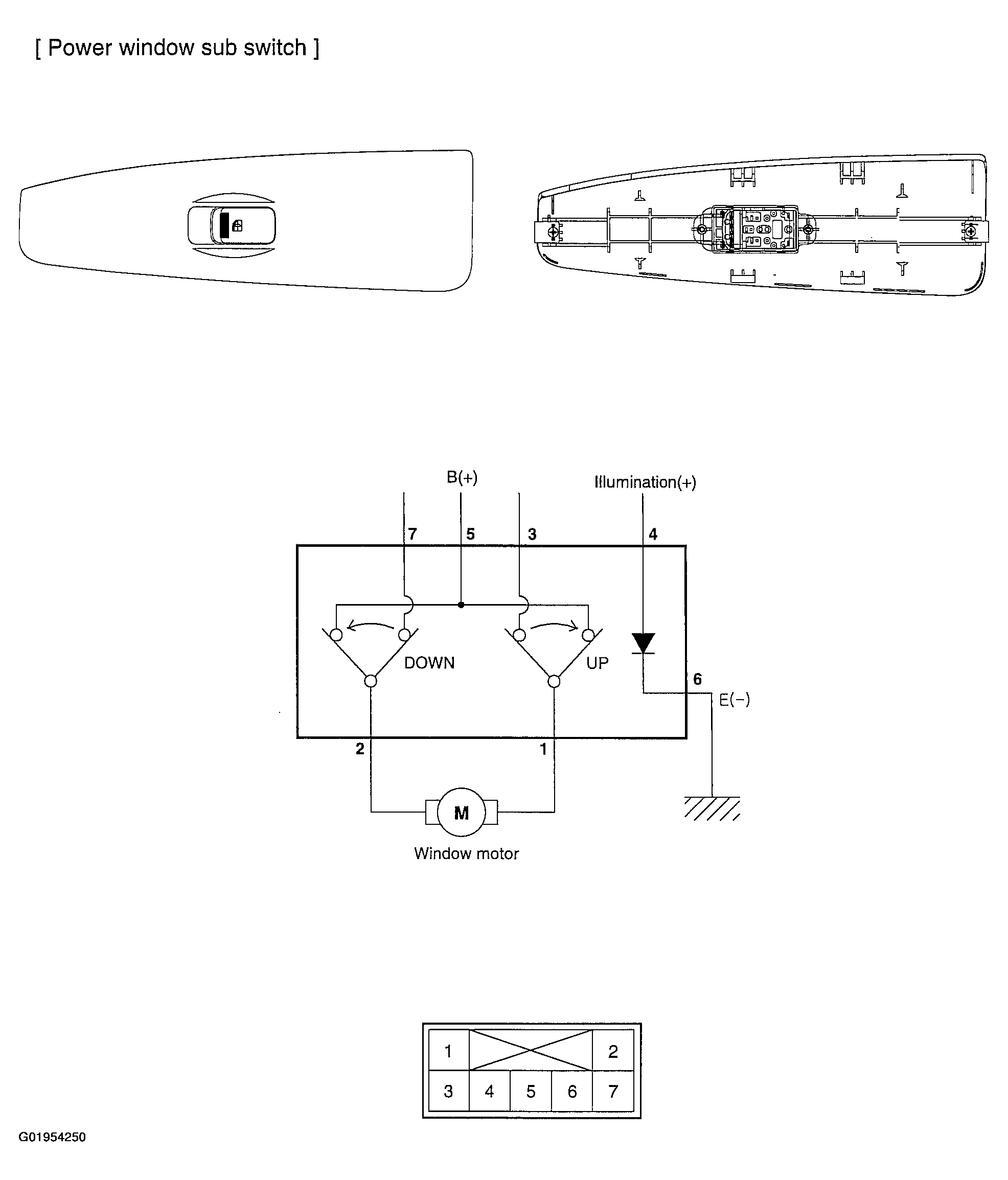

Fig 2: Identifying Power Window Sub Switch & Circuit Diagram
G01954250Courtesy of KIA MOTORS AMERICA, INC.
