Front Power Window Motor Inspection

  1. Remove the front door trim panel.
  2. Disconnect the 2P connector from the motor.

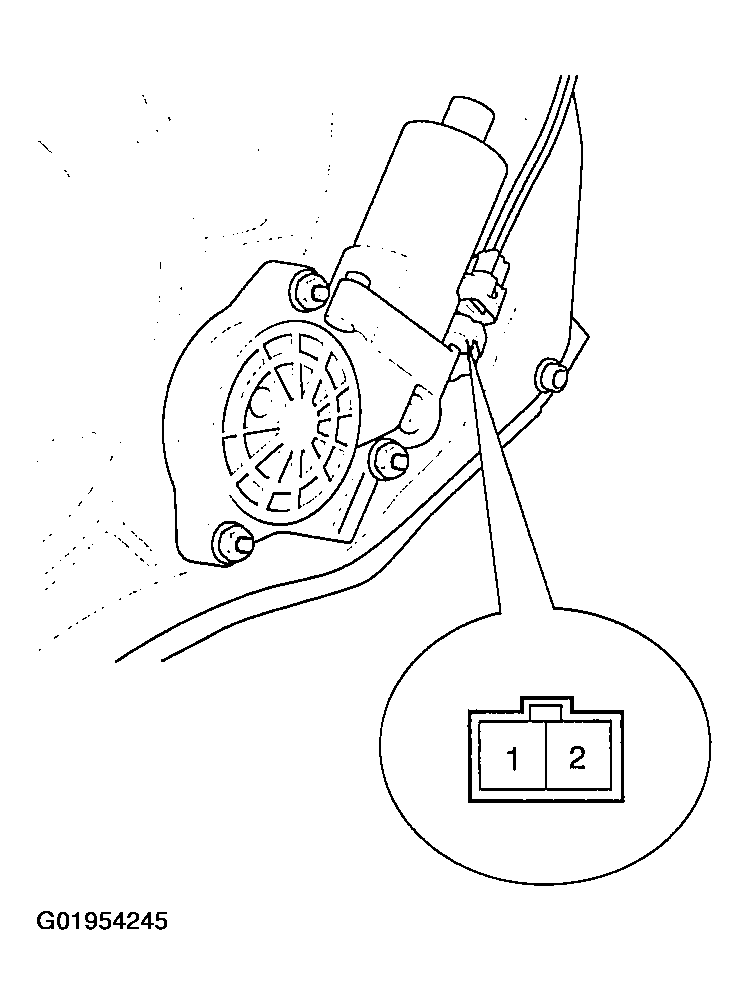

    Fig 1: Identifying Power Window Motor Connector
    G01954245Courtesy of KIA MOTORS AMERICA, INC.
  3. Connect the motor terminals directly to battery voltage (12V) and check that the motor operates smoothly. Next, reverse the polarity and check that the motor operates smoothly in the reverse direction. If the operation is abnormal, replace the motor.
    Fig 2: Testing Power Window Motor Operation
    G01954246Courtesy of KIA MOTORS AMERICA, INC.
