Cylinder Head Assembly: Disassembly

NOTE: Identify MLA (Mechanical Lash Adjuster), valves, valve springs as they are removed so that each item can be reinstalled in its original position.
  1. Remove the MLA's (A).

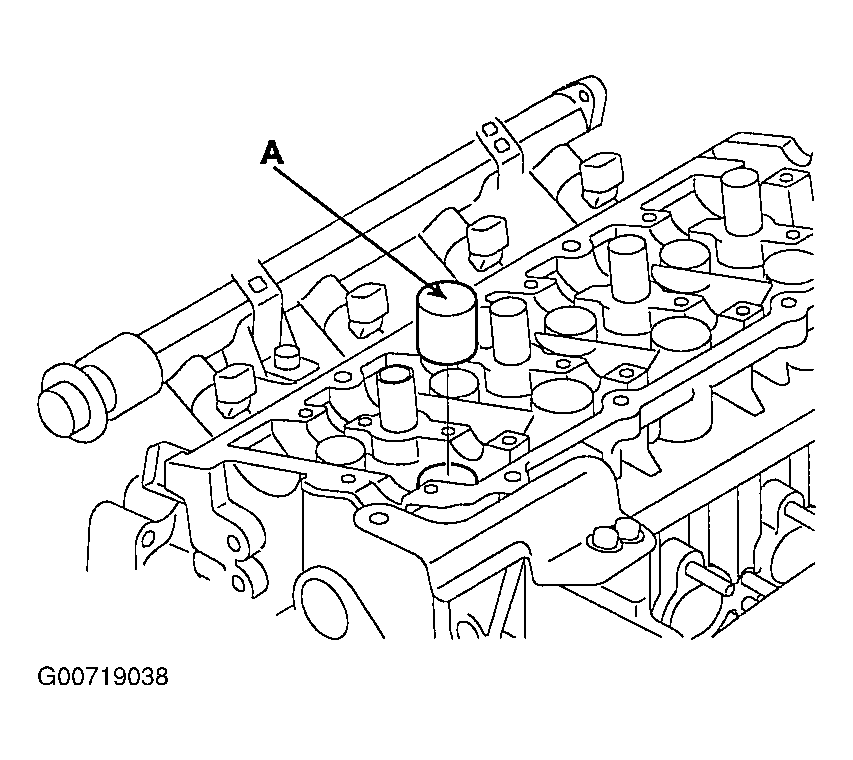

    Fig 1: Removing Mechanical Lash Adjusters
    G00719038Courtesy of KIA MOTORS AMERICA, INC.
  2. Remove the valves.
    1. Using the Service Tools (09222 - 28000, 09222 - 28100), compress the valve spring and remove the retainer lock.

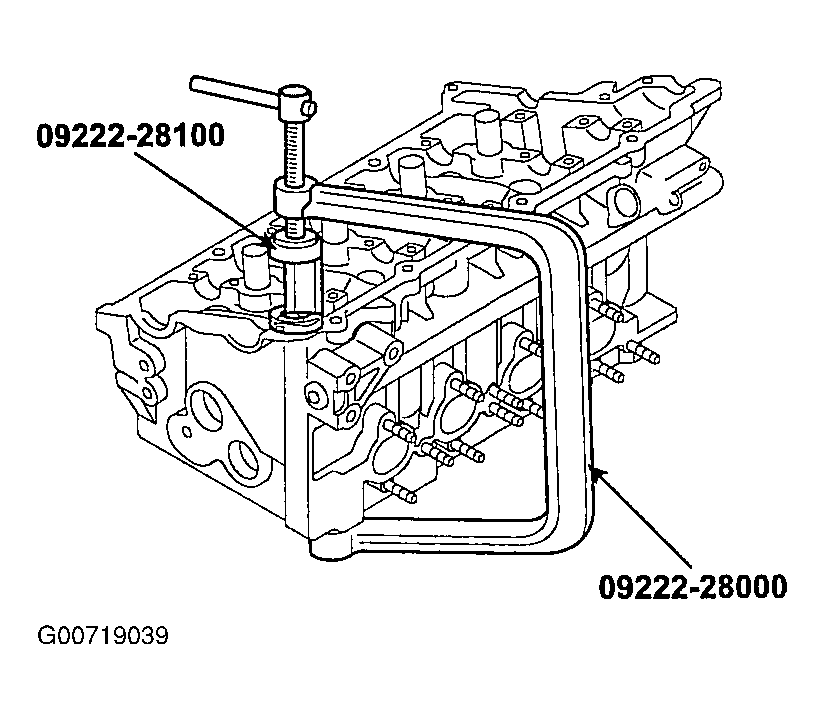

      Fig 2: Compressing Valve Springs & Removing Retainers Locks
      G00719039Courtesy of KIA MOTORS AMERICA, INC.
    2. Remove the spring retainer.
    3. Remove the valve spring.
    4. Remove the valve.
    5. Using a needle-nose pliers, remove the oil seal.
    6. Using a magnetic finger, remove the spring seat.
