Clutch Pedal: Installation

Apply the specified grease to the clutch pedal and bushings.
Chassis grease: SAE J310a, NLGI No. 1

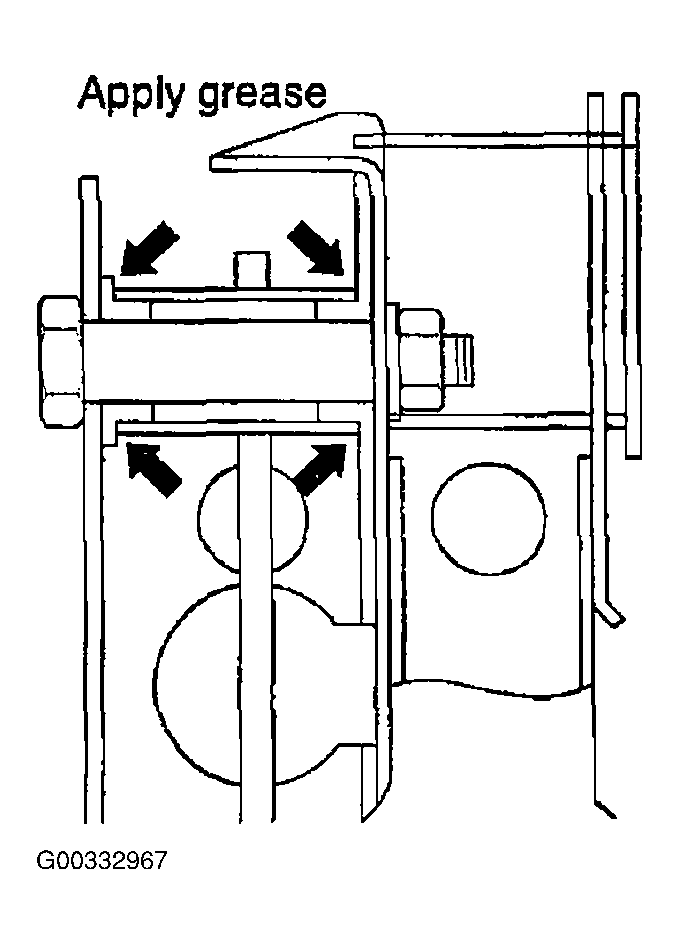

Fig 1: Identifying Lubrication Points
Courtesy of KIA MOTORS AMERICA, INC.
Install the clutch pedal mounting bolt.
Apply the specified grease to the clevis pin and washer.
Wheel bearing grease: SAE J310, NLGI No. 2

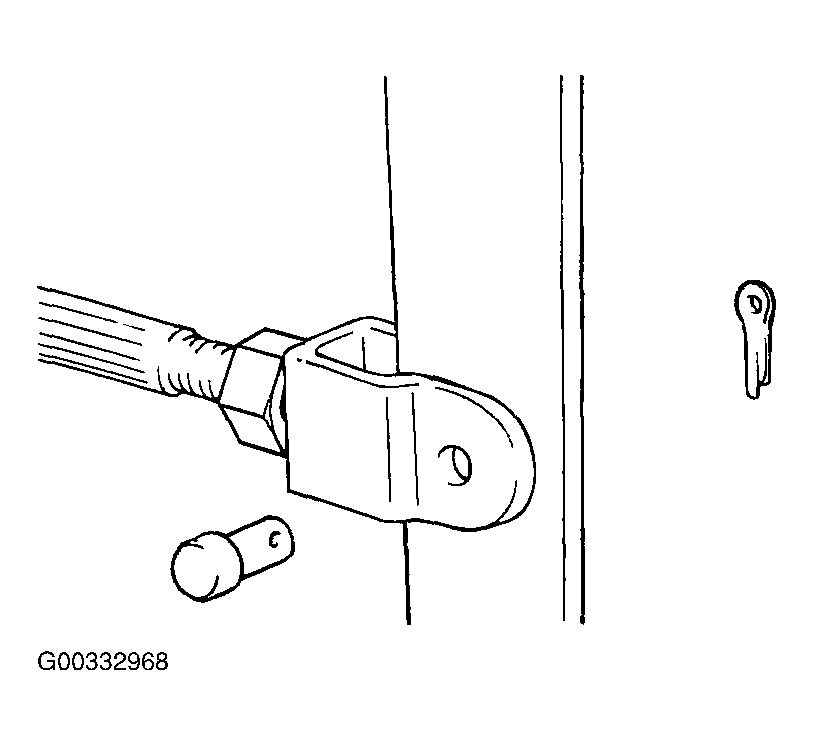

Fig 2: Identifying Clevis Pin
Courtesy of KIA MOTORS AMERICA, INC.
Install the push rod to the clutch pedal.
Adjust the clutch pedal clevis pin play.

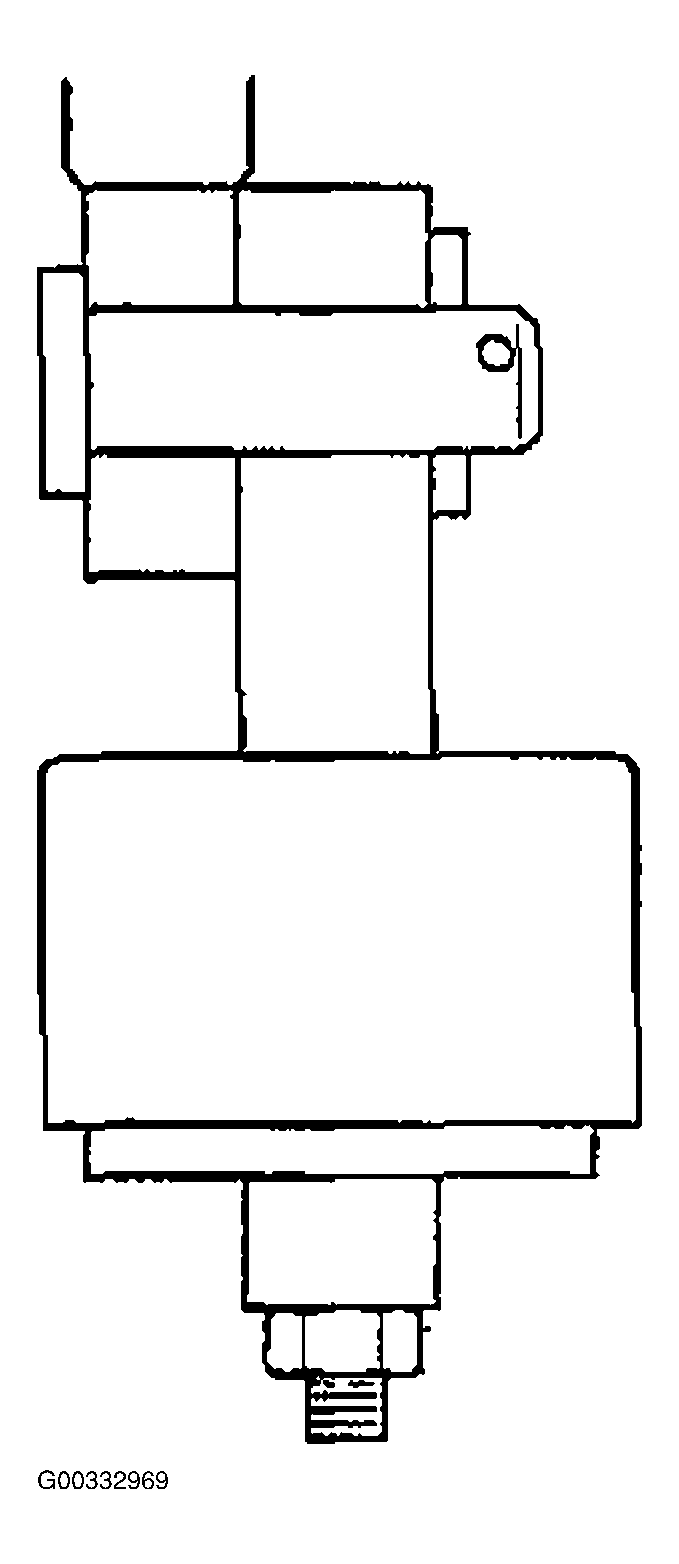

Fig 3: Identifying Clevis Pin Connection
Courtesy of KIA MOTORS AMERICA, INC.
