Lubrication System: Component

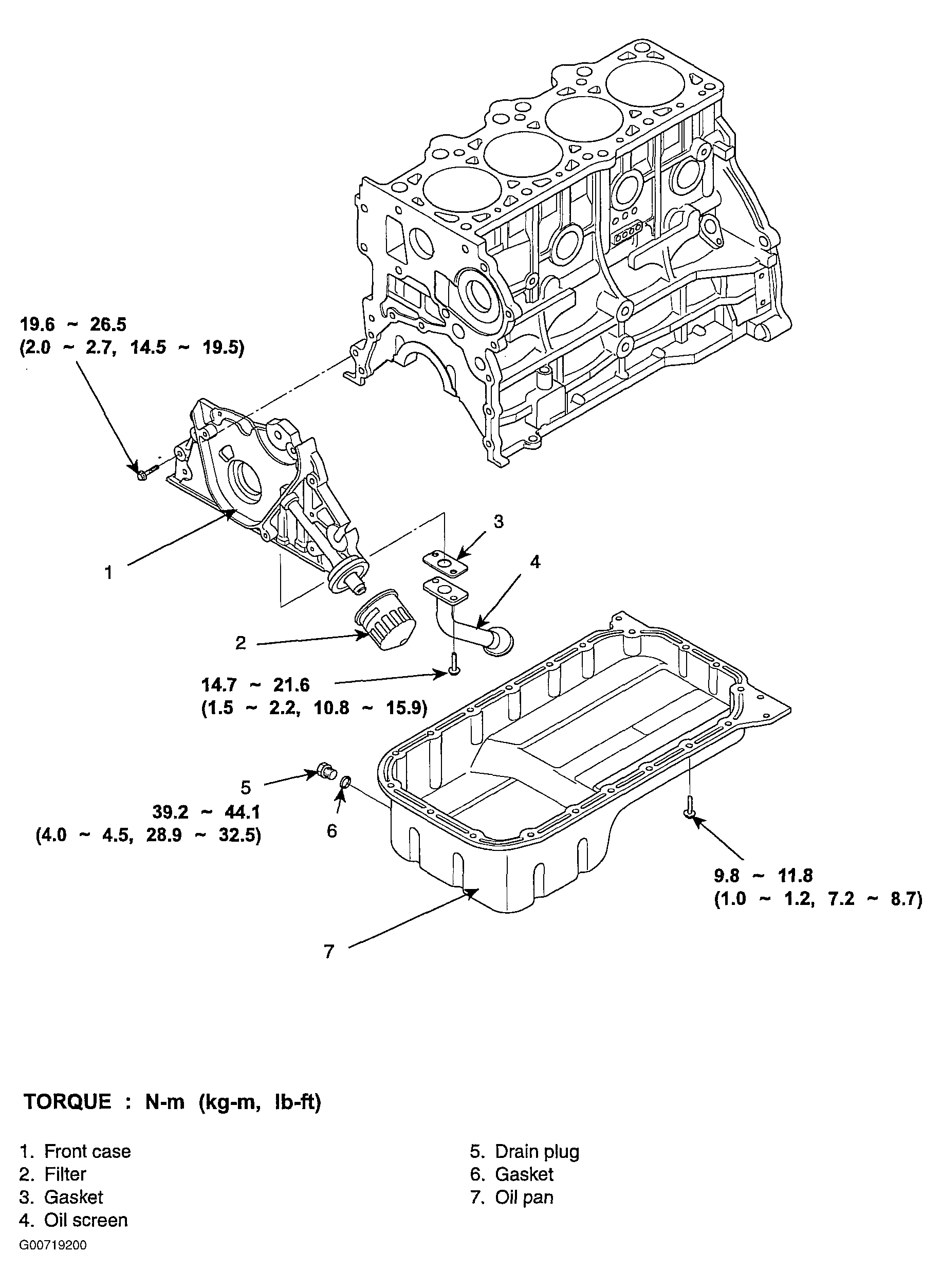

Fig 1: Lubrication System Replacement Components With Torque Specifications (1 Of 2)
G00719200Courtesy of KIA MOTORS AMERICA, INC.

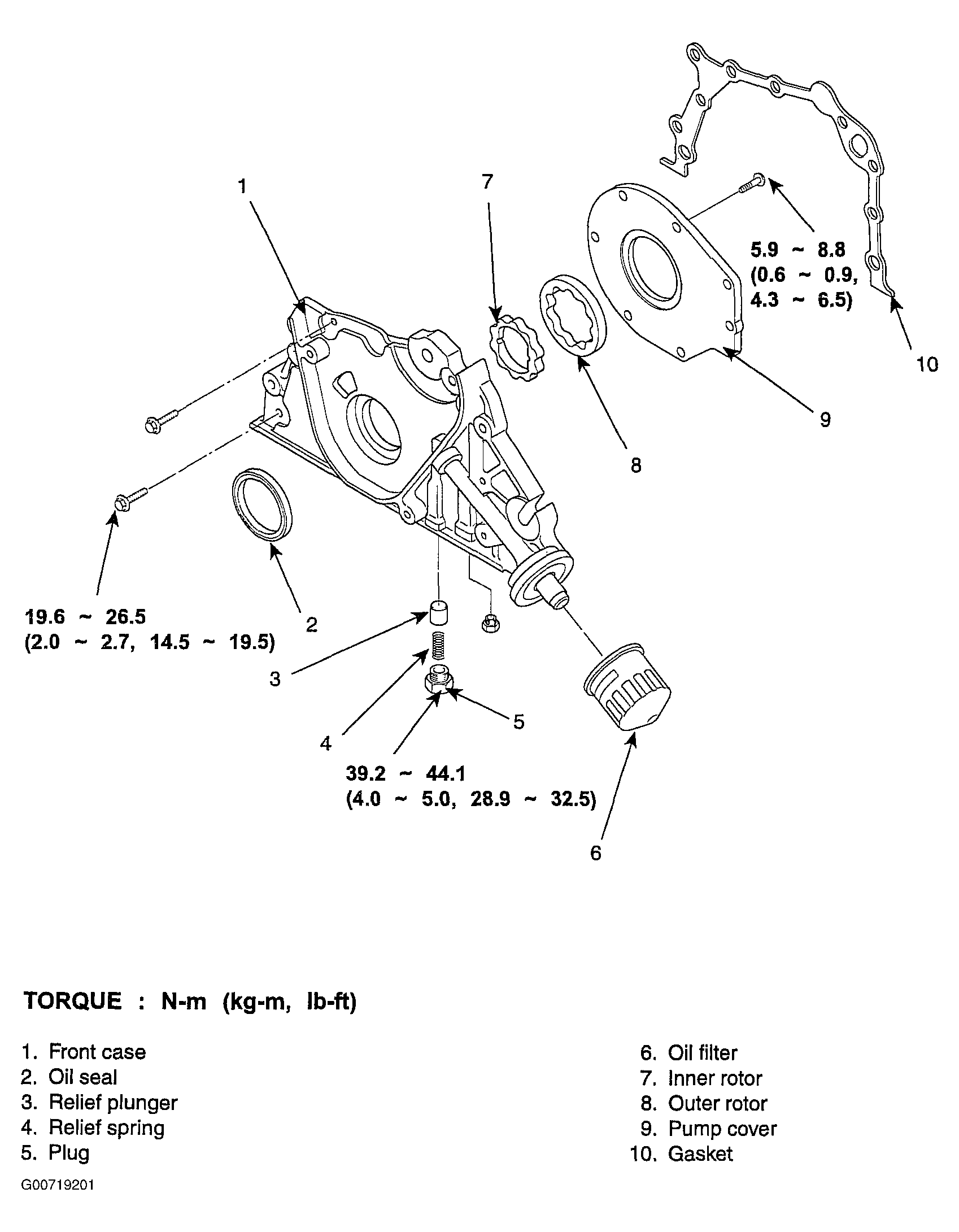

Fig 2: Lubrication System Replacement Components With Torque Specifications (2 Of 2)
G00719201Courtesy of KIA MOTORS AMERICA, INC.
