Warning Lamp Operating Conditions

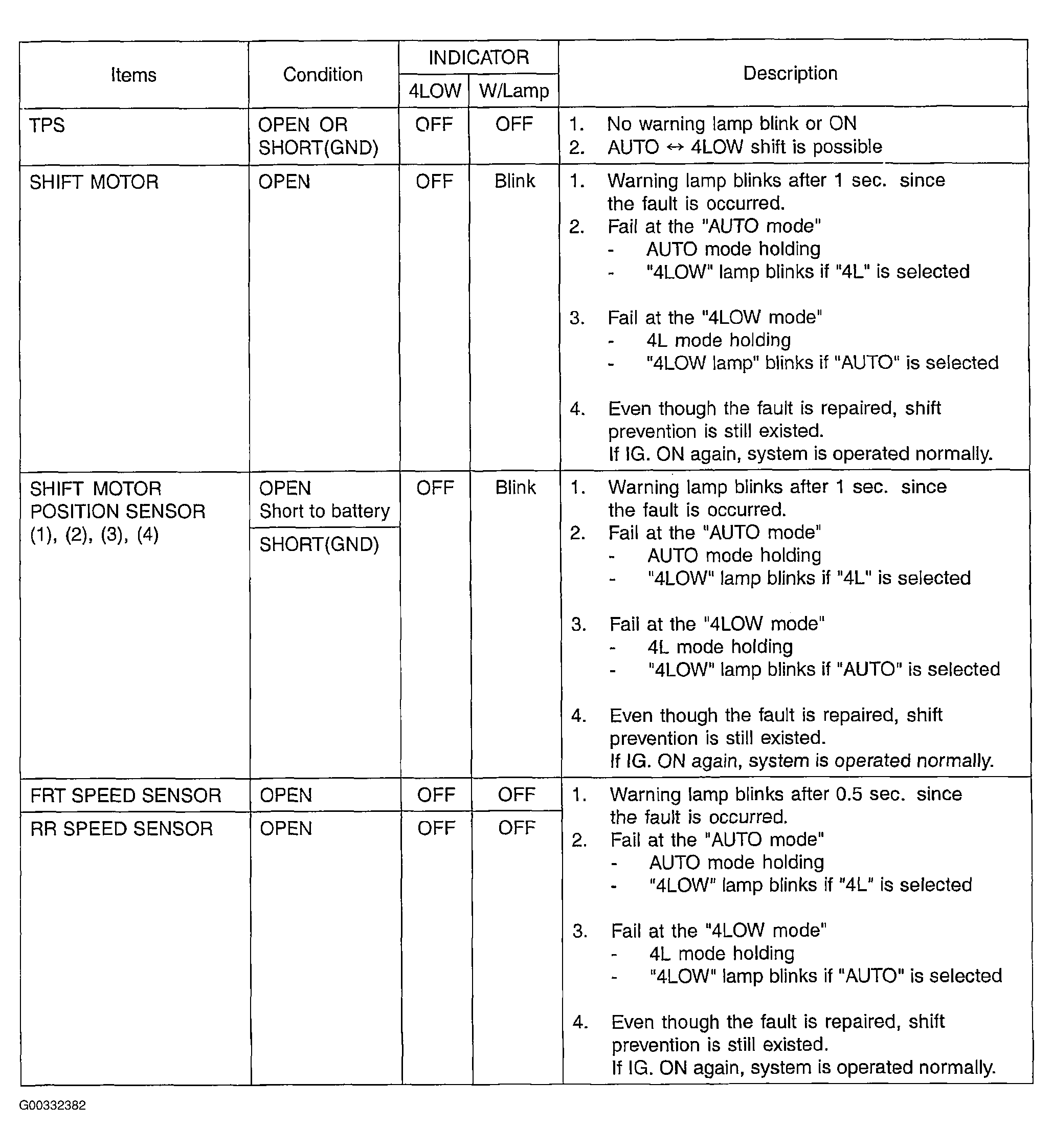

Fig 1: Warning Lamp Operating Conditions Table (1 Of 2)
G00332382Courtesy of KIA MOTORS AMERICA, INC.

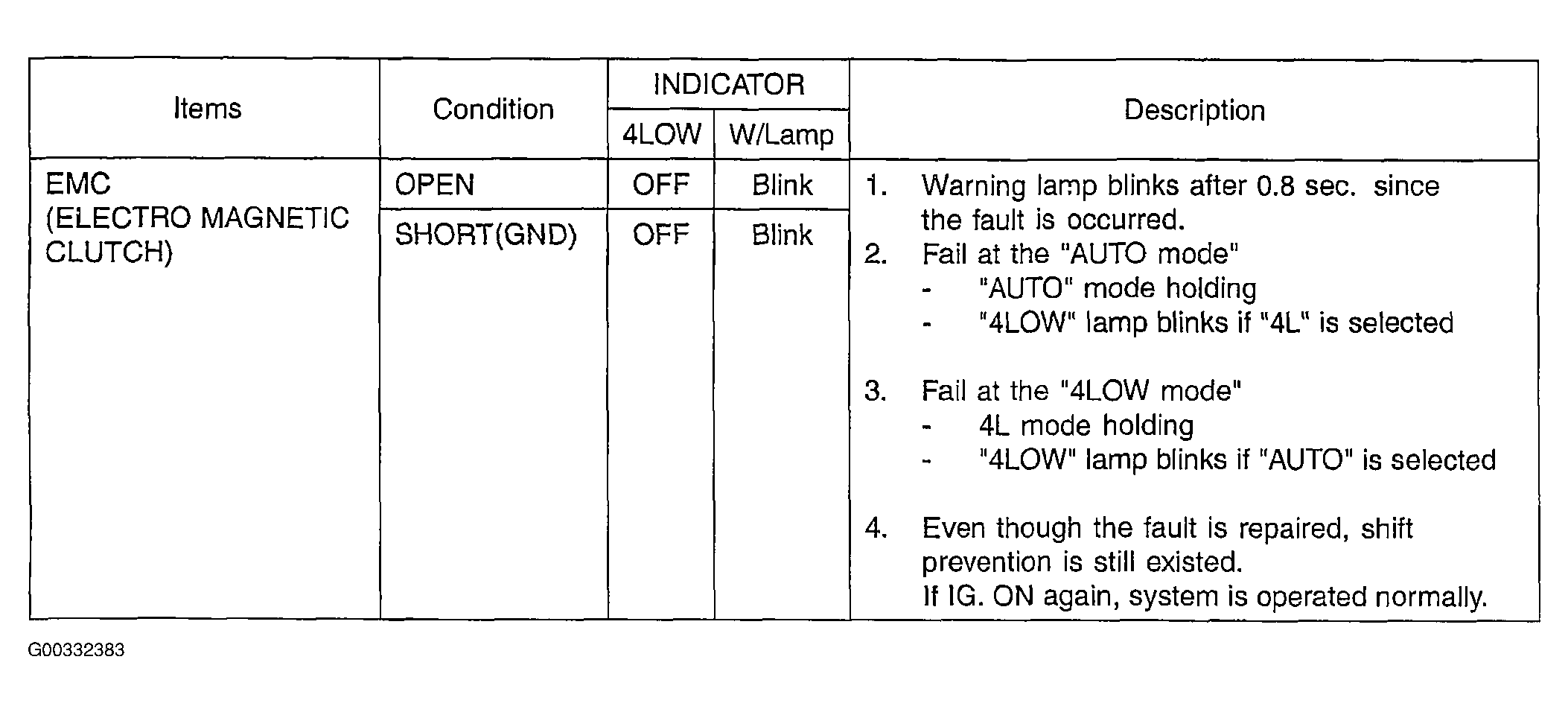

Fig 2: Warning Lamp Operating Conditions Table (2 Of 2)
G00332383Courtesy of KIA MOTORS AMERICA, INC.
