Timing Chain: Disassembly

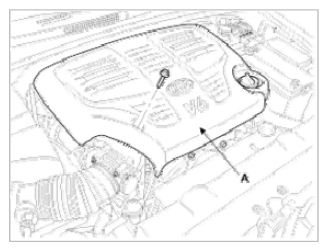

  1. Remove the engine cover.
    Fig 1: Identifying Engine Cover With Mounting Screw
    G07767752
  2. Remove the engine room resonator(A).

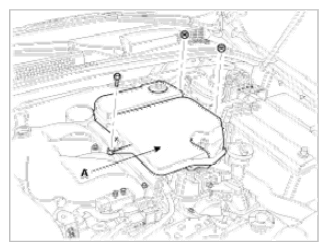

    Fig 2: Identifying Engine Room Resonator With Mounting Screws
    G07767753
  3. After disconnecting the MAF sensor connector(A) and the breather hose(B), remove the air cleaner assembly(C).

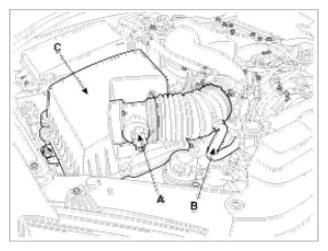

    Fig 3: Identifying MAF Sensor Connector, Breather Hose And Air Cleaner Assembly
    G07767754

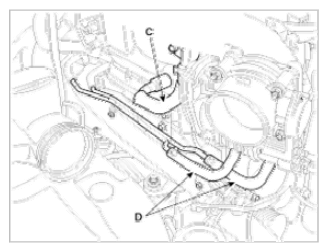

  4. After disconnecting the other breather hose(A), the Purge Control Solenoid Valve(PCSV) hose(B), the Positive Crankcase Ventilation (PCV) hose(C) and the Electronic Throttle Control(ETC) cooling hoses(D), remove the surge tank assemlby(E).
    Fig 4: Identifying Positive Crankcase Ventilation Hose And Electronic Throttle Control Cooling Hoses
    G07767755

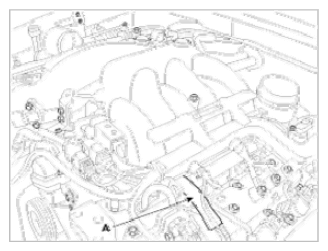

    Fig 5: Identifying Other Breather Hose
    G07767756

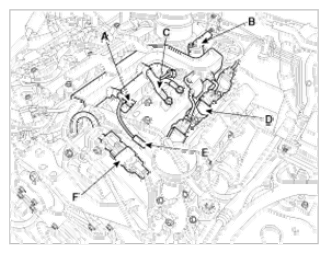

  5. Remove the wiring over the surge tank.
    1. Disconnect the injection harness connector(A).
    2. Disconnect the camshaft position sensor(CMP) harness connector(B).
    3. Disconnect the ground lines(C).
    4. Disconnect the ignition coil harness connector(D).
    5. Disconnect the condensor connector(E).
    6. Disconnect the oil control valve(OCV) harness connector(F).
    Fig 6: Identifying Injection Harness Connector, Ground Lines, Ignition Coil Harness Connector, Condensor Connector And Oil Control Valve Harness Connector
    G07767757

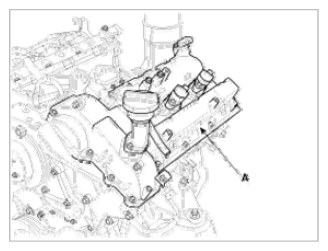

  6. Loosen the cylinder head cover bolts and then remove the cover(A) and gasket.
    Fig 7: Identifying Cylinder Head Cover
    G07767758
  7. Set No.1 cylinder to TDC/compression.
    1. Turn the crankshaft pulley and align its groove with the timing mark "T" of the lower timing chain cover.
      NOTE: Do not rotate engine counterclockwise.

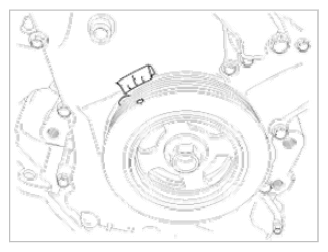

      Fig 8: Identifying Timing Mark On Lower Timing Chain Cover
      G07767759

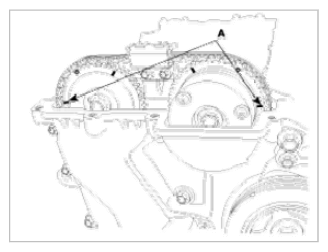

    2. Check that the mark(A) of the camshaft timing sprockets are in straight line on the cylinder head surface as shown in the illustration.

    If not, turn the crankshaft one revolution (360°).

    Fig 9: Identifying Mark On Camshaft Timing Sprockets
    G07767760
    NOTE: Do not rotate engine counterclockwise.
  8. Remove the lower oil pan(A).

    Insert the blade of SST(09215-3C000) between the upper oil pan and lower oil pan, and cut off applied sealer and removed lower oil pan.

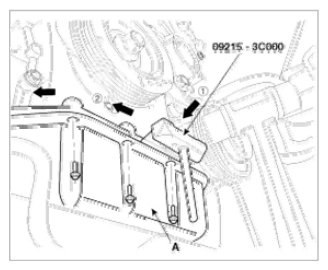

    Fig 10: Inserting Blade Of SST (09215-3C000) Between Upper Oil Pan And Lower Oil Pan
    G07767761
    CAUTION:
    • Insert the SST between the oil pan and the ladder frame by tapping it with a plastic hammer in the direction of (1) arrow.
    • After tapping the SST with a plastic hammer along the direction of (2) arrow around more than 2/3 edge of the oil pan, remove it from the ladder frame.
    • Do not turn over the SST abruptly without tapping. It can result in damage of the SST.
  9. Remove the crankshaft damper pulley(A).

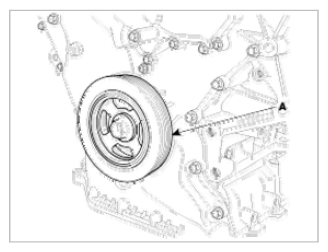

    Fig 11: Identifying Crankshaft Damper Pulley
    G07767762
  10. Remove the timing chain cover(A).

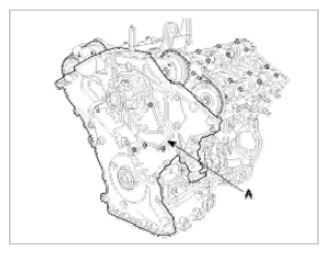

    Fig 12: Identifying Timing Chain Cover
    G07767763
    NOTE:
    • Be careful not to damage the contact surfaces of cylinder block, cylinder head and timing chain cover.
    • Mark on the timing chain on the basis of the marking on sprocket and CVVT.
  11. Install a set pin after compressing the timing chain tensioner.

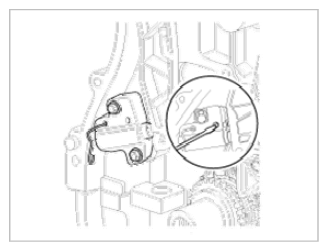

    Fig 13: Installing Set Pin
    G07767764
  12. Remove RH cam-to-cam guide(A).

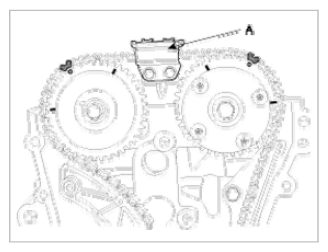

    Fig 14: Identifying RH Cam-To-Cam Guide
    G07767765
  13. Remove RH timing chain auto tensioner(A) and RH timing chain tensioner arm(B).

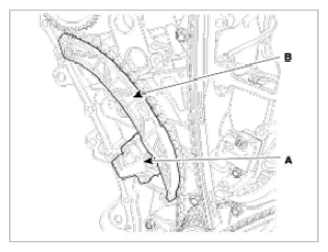

    Fig 15: Identifying RH Timing Chain Auto Tensioner And RH Timing Chain Tensioner Arm
    G07767766
  14. Remove oil pump chain cover(A).

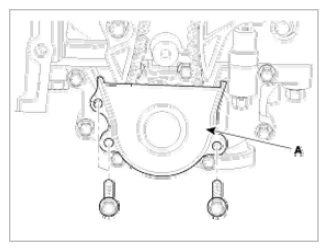

    Fig 16: Identifying Oil Pump Chain Cover With Mounting Bolts
    G07767767

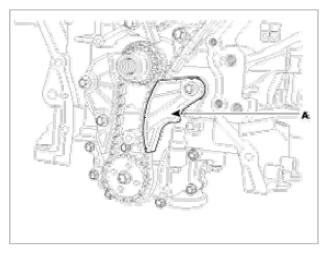

  15. Remove oil pump chain tensioner assembly(A).
    Fig 17: Identifying Oil Pump Chain Tensioner Assembly
    G07767768
  16. Remove oil pump chain guide(A).

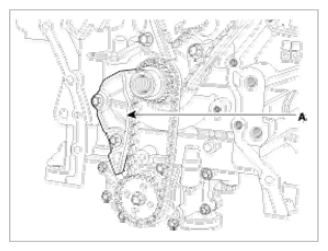

    Fig 18: Identifying Oil Pump Chain Guide
    G07767769
  17. Remove RH timing chain.
  18. Remove RH timing chain guide(A).

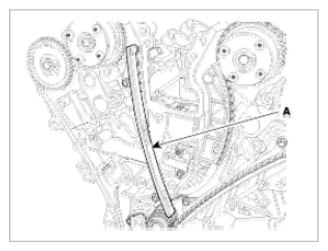

    Fig 19: Identifying RH Timing Chain Guide
    G07767770

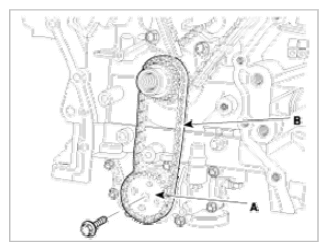

  19. Remove oil pump chain sprocket(A) and oil pump chain(B).
    Fig 20: Identifying Oil Pump Chain Sprocket And Oil Pump Chain With Mounting Bolts
    G07767771
  20. Remove crankshaft sprocket(A)(O/P&RH camshaft drive).

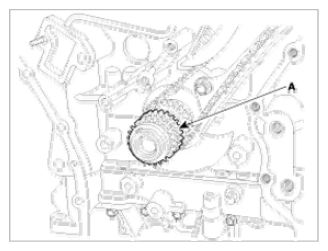

    Fig 21: Identifying Crankshaft Sprocket (O/P And RH Camshaft Drive)
    G07767772

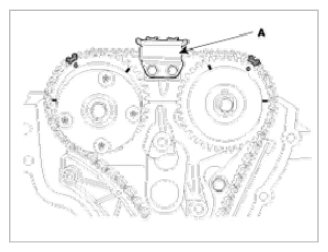

  21. Remove LH cam-to-cam guide(A).
    Fig 22: Identifying LH Cam-To-Cam Guide
    G07767773
  22. Remove LH timing chain auto tensioner(A) and LH timing chain tensioner arm(B).

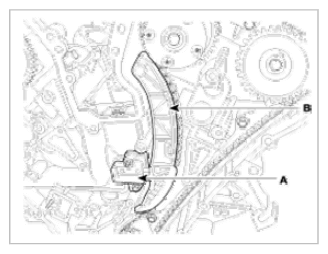

    Fig 23: Identifying LH Timing Chain Auto Tensioner And LH Timing Chain Tensioner Arm
    G07767774
  23. Remove LH timing chain.

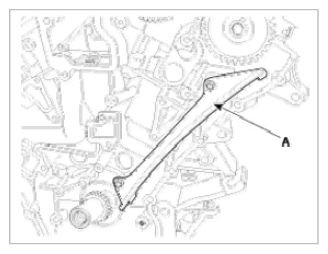

  24. Remove LH timing chain guide(A).
    Fig 24: Identifying LH Timing Chain Guide
    G07767775
  25. Remove crankshaft sprocket(A)(LH camshaft drive).

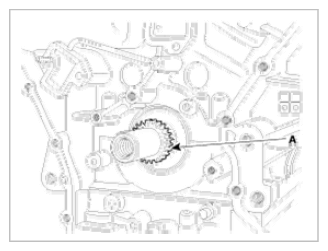

    Fig 25: Identifying Crankshaft Sprocket (LH Camshaft Drive)
    G07767776
  26. Remove tensioner adapter assembly(A).

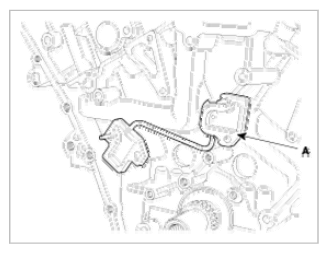

Fig 26: Identifying Tensioner Adapter Assembly
G07767777
