Cooling System: Installation: Radiator

Install the radiator assembly.
Install the cooling fan shroud (A) by connecting cooling fan harness connector (B) and tightening the mounting bolts (C).

Fig 1: Identifying Radiator Cooling Fan Shroud And Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Install the radiator with the condenser by tightening bolts. Refer to Condenser in HEATING, VENTILATION AND AIR CONDITIONING .

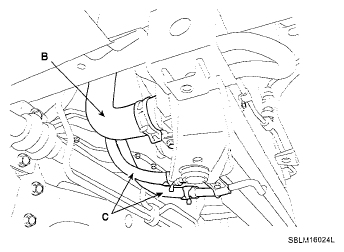

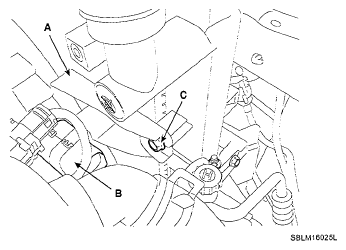

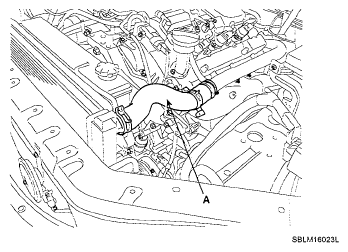

Connect the radiator upper hose (A) and lower hose (B) and the automatic transaxle fluid cooler hoses (C).

Fig 2: Identifying Radiator Upper Hose And Lower Hose
Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Identifying Radiator Upper Hose And Lower Hose
Courtesy of KIA MOTORS AMERICA, INC.

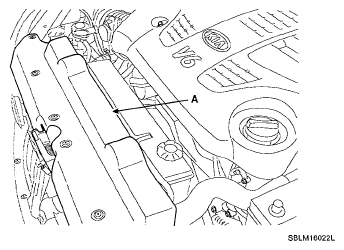

Install the radiator grille upper cover (A).

Fig 4: Identifying Radiator Grille Upper Cover
Courtesy of KIA MOTORS AMERICA, INC.

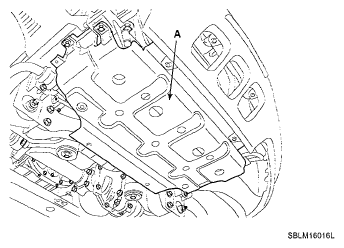

Install the under cover (A).

Fig 5: Identifying Under Cover
Courtesy of KIA MOTORS AMERICA, INC.

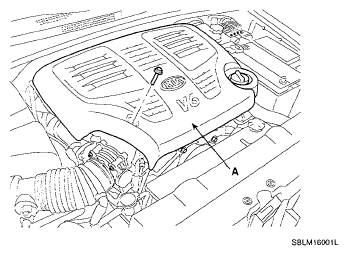

Install the engine cover (A).

Fig 6: Identifying Engine Cover
Courtesy of KIA MOTORS AMERICA, INC.
Refill engine coolant.
