Monitor Scan Tool Data

WARNING: This page is about a different variant/trim than selected.
  1. Connect scan tool to data link connector (DLC).
  2. Engine "ON".
  3. Monitor the "CAN COMMUNICATION SERVICE DATA (ENGINE RPM, VEHICLE SPEED SENSOR, THROTTLE P. SENSOR)" parameters on the scan tool.

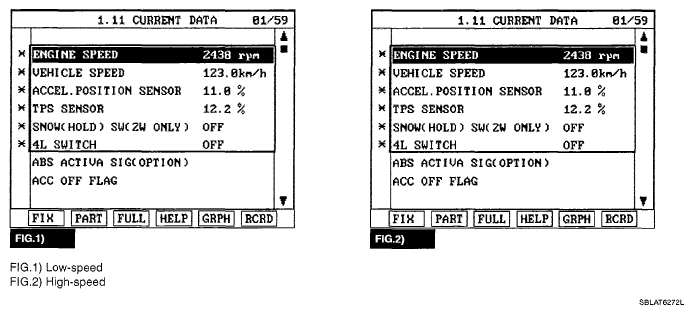

    Fig 1: Scan Tool Display - Engine Speed
    G05119293Courtesy of KIA MOTORS AMERICA, INC.
  4. Does "CAN BUS LINE DATA" follow the reference data?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or PCM/TCM's connector or was repaired and PCM/TCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
