Monitor Scan Tool Data

WARNING: This page is about a different variant/trim than selected.
  1. Connect scan tool to data link connector (DLC).
  2. Engine "ON".
  3. Monitor the "TCC SOL. VALVE" parameter on the scan tool.
  4. Select "D RANGE" and Operate the vehicle 5 gear.
  5. Check "TCC SOL. VALVE" parameter value changes while driving.

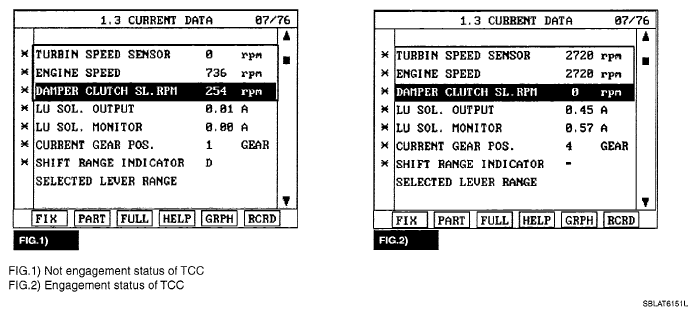

    Fig 1: Scan Tool Display - Damper Clutch SL. RPM
    G05119261Courtesy of KIA MOTORS AMERICA, INC.
  6. Does "TCC SOLENOID DUTY" follow the reference data?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or TCM (PCM)'s connector or was repaired and TCM (PCM) memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
