Monitor Scan Tool Data

WARNING: This page is about a different variant/trim than selected.
  1. Connect scan tool to data link connector (DLC).
  2. Engine "ON".
  3. Select "D RANGE" and drive vehicle 5 gear.
  4. Monitor the "TORQUE CONVERTER (DAMPER) CLUTCH" parameter on the scan tool.

    Specification: Calculated slip (engine speed-input speed) < 100 RPM

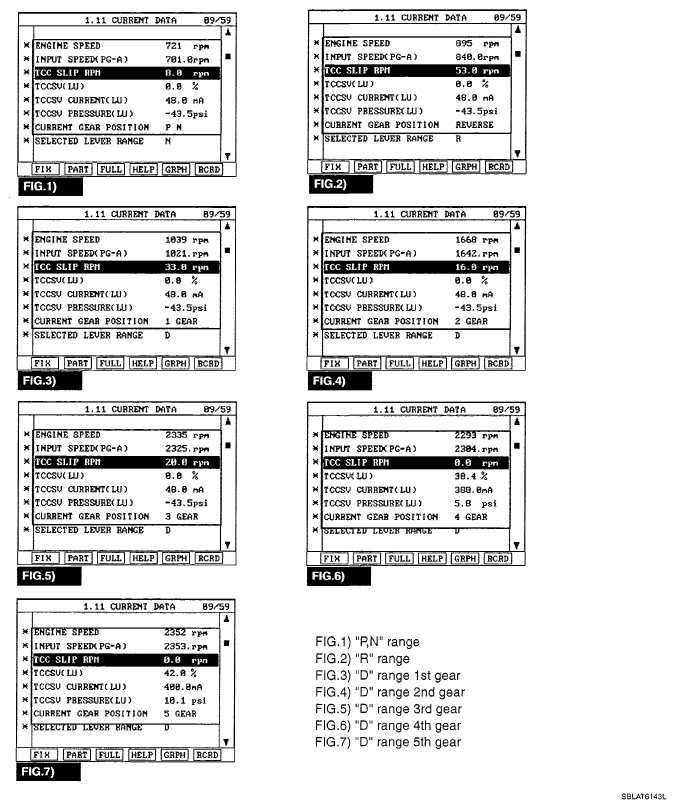

    Fig 1: Scan Tool Display - ICC Slip RPM
    G05119258Courtesy of KIA MOTORS AMERICA, INC.
  5. Is "TCC SLIP (DAMPER CLUTCH SL.RPM)" within specifications?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or PCM/TCM's connector or was repaired and PCM/TCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
