Component Inspection
WARNING: This page is about a different variant/trim than selected.
- Connect Scan tool.
- Engine "ON".

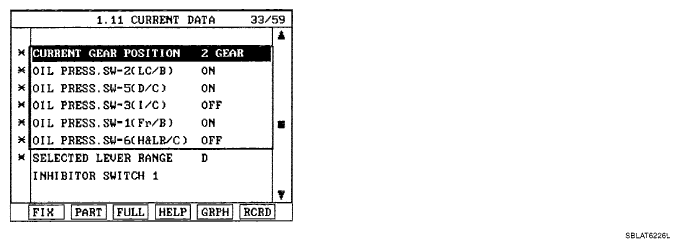

- Monitor the "OIL PRESSURE. S/W 1,2,3,5,6" parameter on the scan tool.
- Move select lever to "D" range and operate vehicle within 2nd gear condition.OIL PRESSURE SWITCH SPECIFICATION
Shift position Oil Pressure Switch I/C (SW3) H & LR/C (SW6) H & LR/C (SW6) FR/B (SW1) LC/B (SW2) P X ◦ X ◦ X R X ◦ X ◦ X N X ◦ X ◦ X D 1st gear X X X ◦ X 2nd gear X X ◦ ◦ X 3rd gear X ◦ ◦ ◦ X 4th gear ◦ ◦ ◦ X X 5th gear ◦ ◦ X ◦ X - Is oil pressure value within specifications?
YES
- Repair AUTO TRANSAXLE (Clutch or Brake) as necessary and Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Replace AUTO TRANSAXLE (BODY CONTROL VALVE faulty) as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
