Monitor Scan Tool Data

WARNING: This page is about a different variant/trim than selected.
  1. Connect scan tool to data link connector (DLC).
  2. Engine "ON".
  3. Monitor the "INPUT SPEED SENSOR 1" parameter on the scan tool.
  4. Driving at speed of over 12.42 MPH (20km/h) at 1 gear.

    Specification : Increasing Gradually

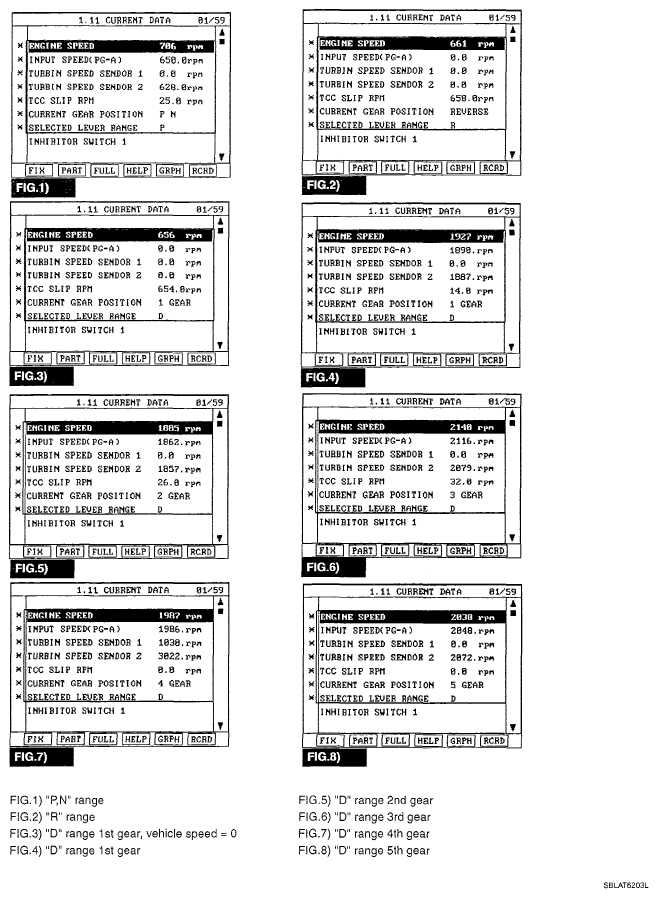

    Fig 1: Scan Tool Display - Engine Speed
    G05119226Courtesy of KIA MOTORS AMERICA, INC.
  5. Does "INPUT SPEED SENSOR" follow the reference data?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or PCM/TCM's connector or was repaired and PCM/TCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
