Telltale Lamp Connector End View
Telltale Lamp Connector End View

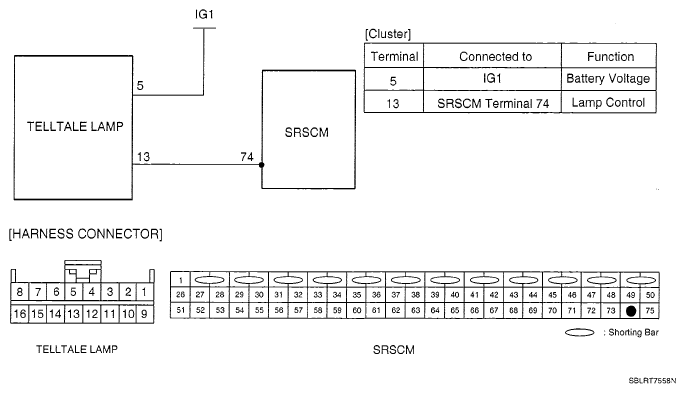

Fig 1: Telltale Lamp Connector End View
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
