Instrument Cluster Connector End Views

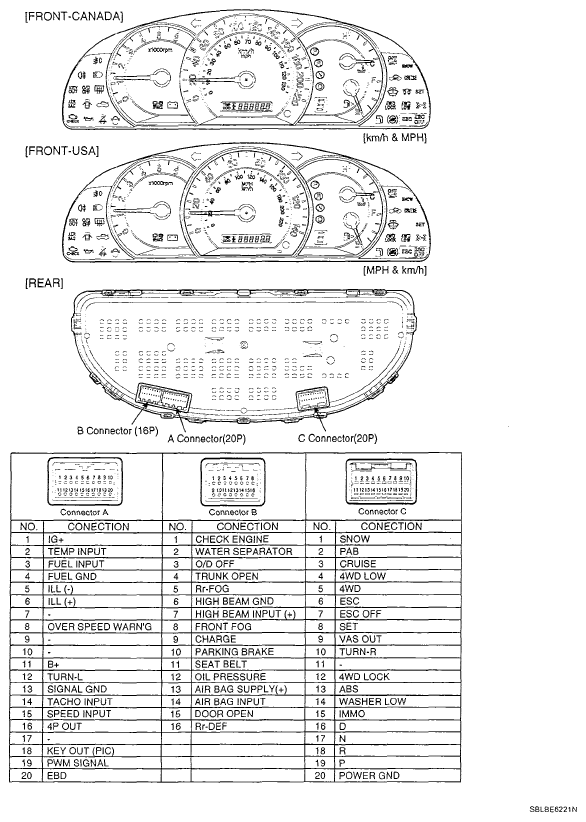

Fig 1: Instrument Cluster Connector End Views

G05119806

Courtesy of KIA MOTORS AMERICA, INC.
