Spark Test

Remove the ignition coil connector (A).

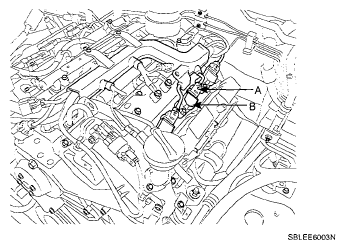

Fig 1: Identifying Ignition Coil Connector And Ignition Coil
Courtesy of KIA MOTORS AMERICA, INC.
Remove the ignition coil (B).
Using a spark plug socket, remove the spark plug,
Install the spark plug to the ignition coil.
Ground the spark plug to the engine.

Fig 2: Checking Spark At Spark Plug
Courtesy of KIA MOTORS AMERICA, INC.
Check if spark occurs while engine is being cranked.
NOTE: To prevent fuel being injected from injectors while the engine is being cranked, remove the fuel pump (A) relay from the fuse box. Crank the engine for no more than 5-10 seconds.

Fig 3: Identifying Fuel Pump Relay From Fuse Box
Courtesy of KIA MOTORS AMERICA, INC.
Inspect all the spark plugs.
Using a spark plug socket, install the spark plug.
Install the ignition coil.
Reconnect the ignition coil connector.

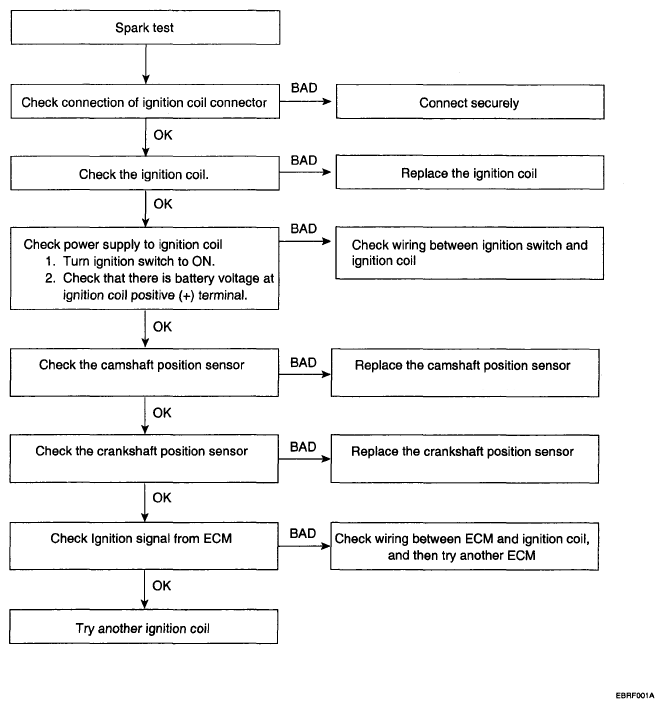

Fig 4: Ignition System Check Chart
Courtesy of KIA MOTORS AMERICA, INC.
