Fuel Tank: Removal

Preparation
1. Fold the rear seat cushion. Refer to "SEAT ".
2. Open the carpet (A).

  Fig 1: Identifying Carpet
  Courtesy of KIA MOTORS AMERICA, INC.
3. Remove the service cover (B).
4. Disconnect the fuel pump connector (A).

  Fig 2: Identifying Fuel Pump Connector
  Courtesy of KIA MOTORS AMERICA, INC.
5. Start the engine and wait until fuel in fuel line is exhausted.
6. After engine stops, turn the ignition switch off.
Disconnect the fuel feed quick-connector (A) and the fuel tank pressure sensor connector (B).

Fig 3: Identifying Fuel Feed Quick-Connector And Fuel Tank Pressure Sensor Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the RH-rear inner wheel house.

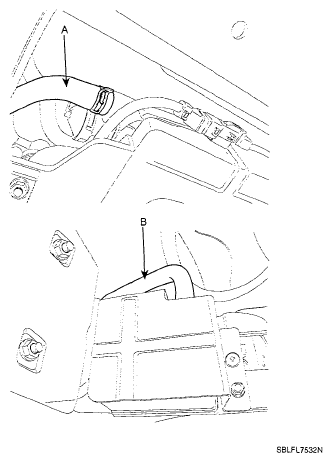

Disconnect the fuel filler hose (A) and the vacuum hose (B) connected with the canister air filter.

Fig 4: Identifying Fuel Filler Hose And Vacuum Hose
Courtesy of KIA MOTORS AMERICA, INC.
Lift the vehicle and support the fuel tank with a jack.
Disconnect the vacuum hoses (A, B) from the canister.

Fig 5: Identifying Vacuum Hoses
Courtesy of KIA MOTORS AMERICA, INC.
Remove the fuel tank mounting bolts (A) and remove the fuel tank from the vehicle.

Fig 6: Identifying Fuel Tank Mounting Bolts (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 7: Identifying Fuel Tank Mounting Bolts (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
