Sensor Detection Range

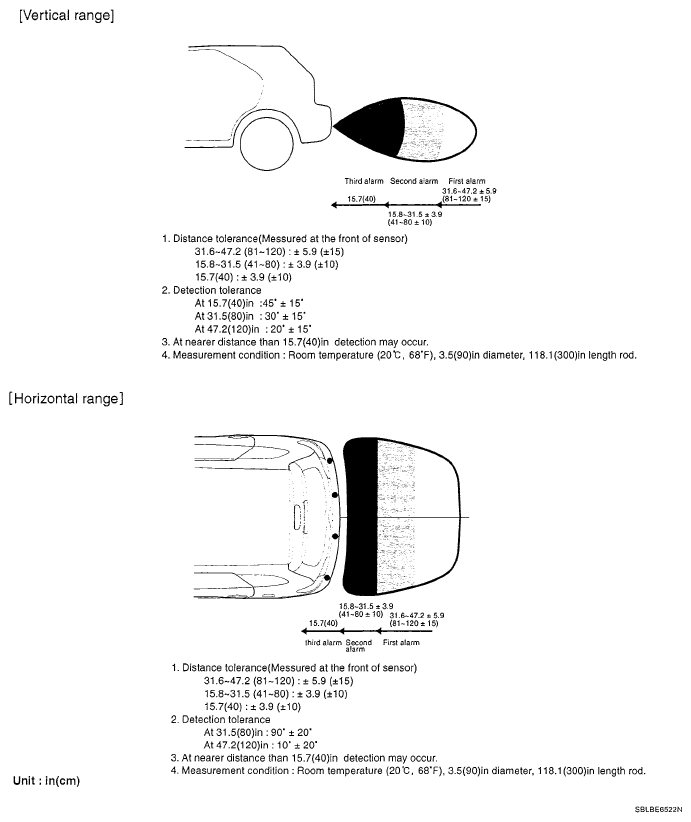

Fig 1: Identifying Sensor Detection Range

Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

14cm (Diameter) plastic rod is used for the test target.
The test result may differ by a different target object.
Detection range may be reduced by dirt accumulated on sensor, and extremely hot or cold weather.
The following object may not be detected.
- Sharp object or thin object like rope.
- Cotton, sponge, snow or other materials absorbing sonic wave.
- Smaller objects than 5.5 in (14cm) Diameter; 39.4 in (1 m) length.
