Component Location

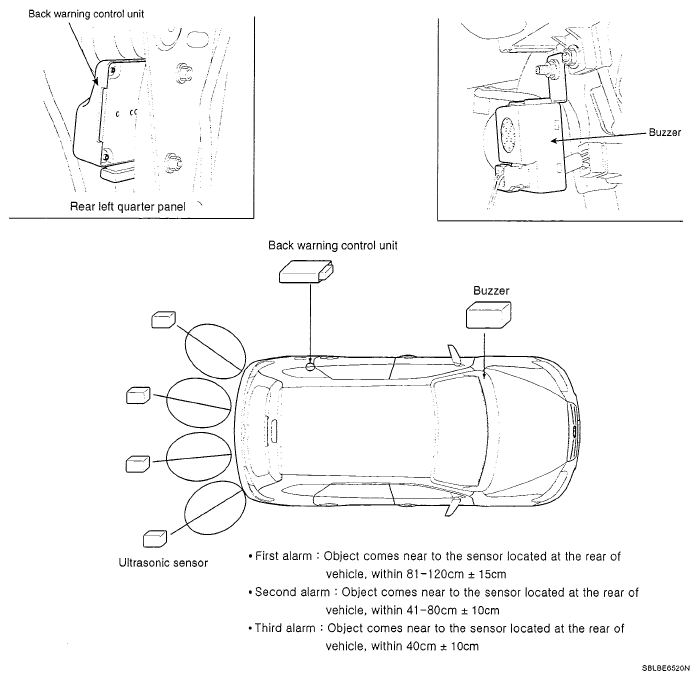

Fig 1: Identifying Body Electrical System Components

G05119857

Courtesy of KIA MOTORS AMERICA, INC.
